€395.00

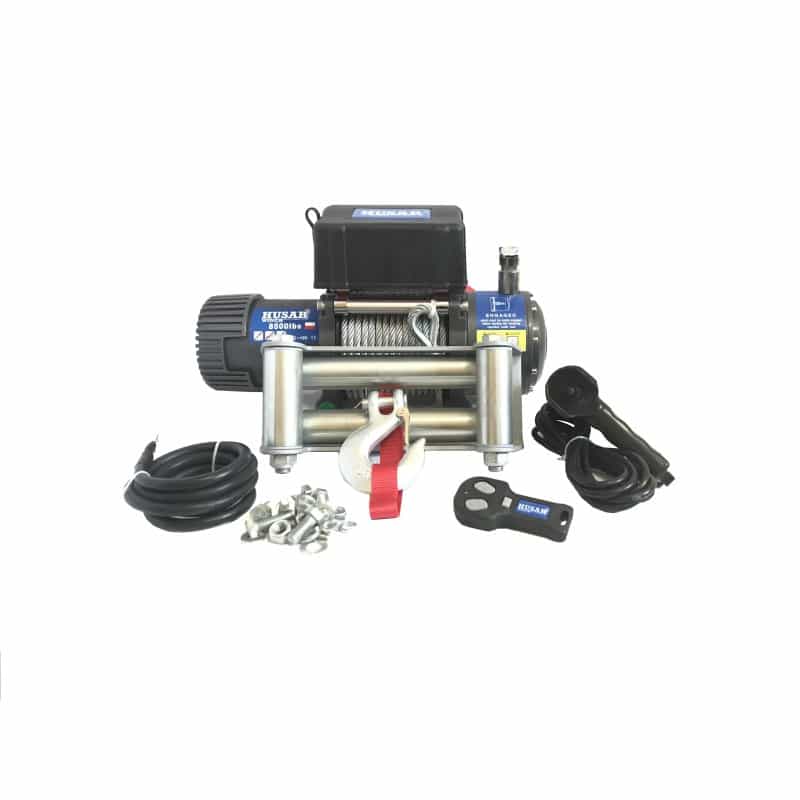

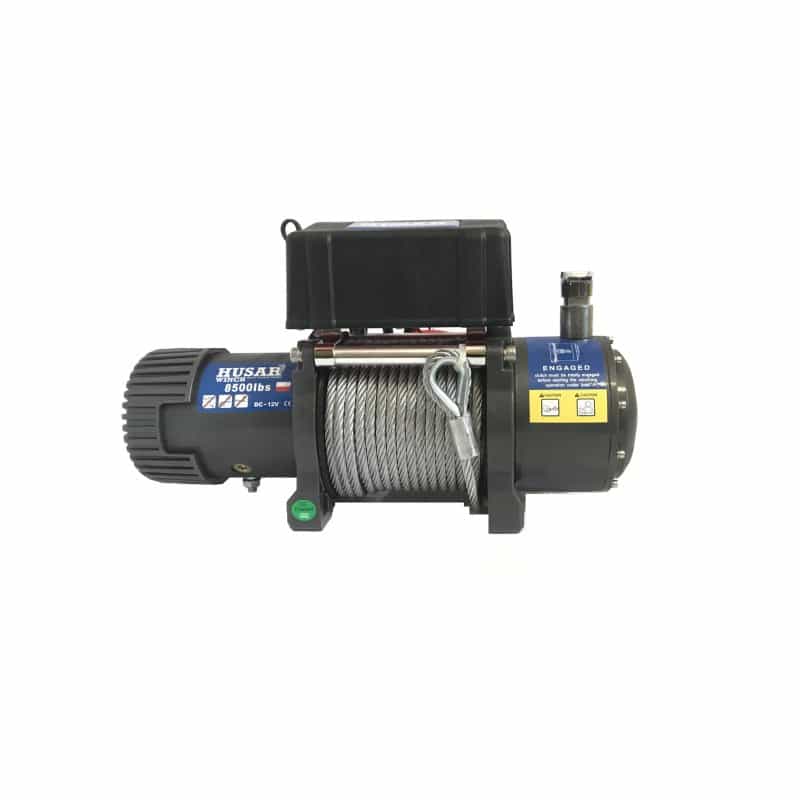

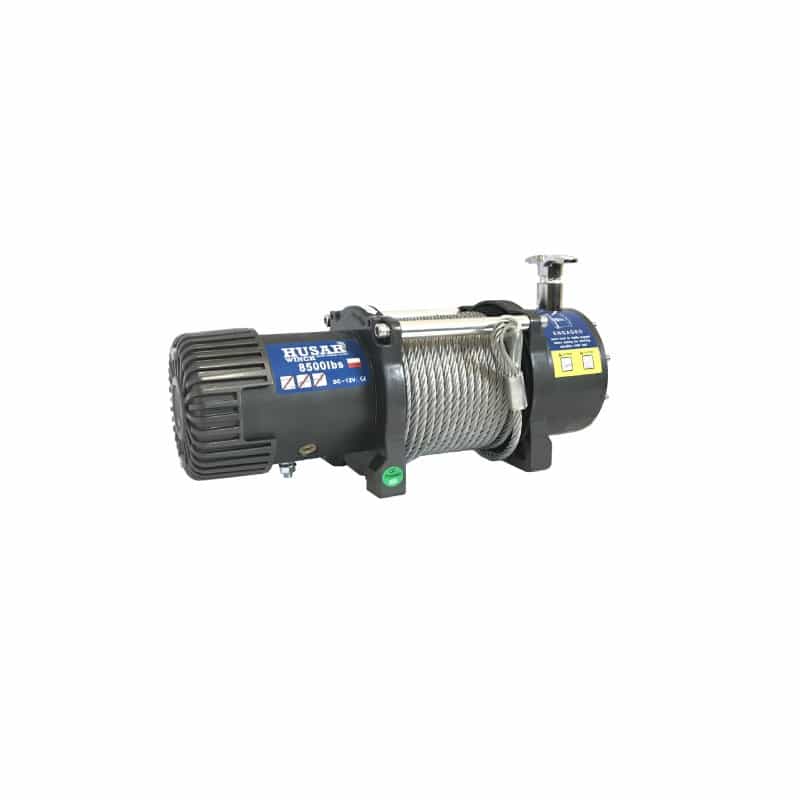

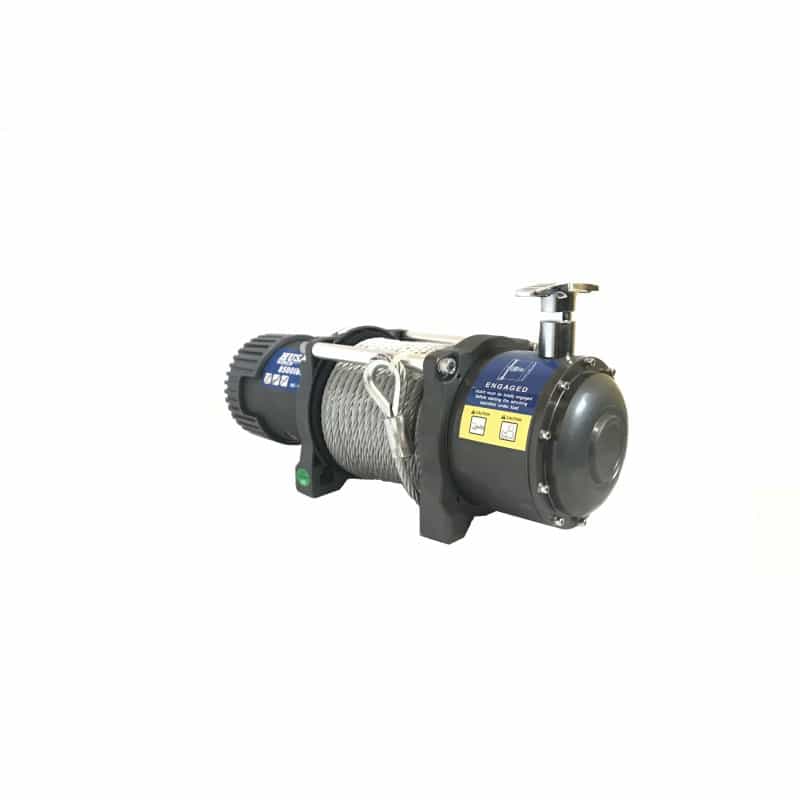

BST 8500lbs Specyfikacja techniczna Pull capacity(single line) 8500lbs / 3856 kgs Motor 12V 5.5 hp Controls Wired / wireless remote control Gear 3-stage planetary Gear ratio 218:1 Brake Automatic Rope 24m Fairlead 4-ways rollers fairlead Net weight 32 kg Mounting...
Περιγραφή
| BST 8500lbs | Specyfikacja techniczna | |
| Pull capacity(single line) | 8500lbs / 3856 kgs | |
| Motor 12V | 5.5 hp | |
| Controls | Wired / wireless remote control | |
| Gear | 3-stage planetary | |
| Gear ratio | 218:1 | |
| Brake | Automatic | |
| Rope | 24m | |
| Fairlead | 4-ways rollers fairlead | |
| Net weight | 32 kg | |

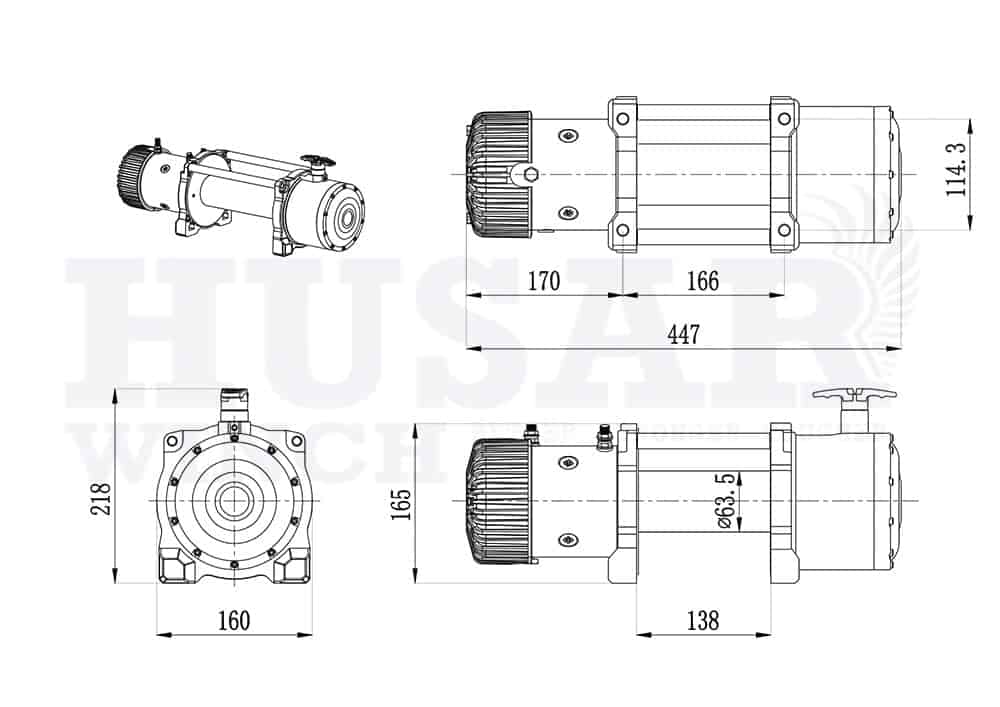

| Mounting bolt pattern | 166mm x 114,3mm | |
| Dimensions | (L x W x H 430 X 160 X 218mm | |
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 2000 | 4000 | 6000 | 8500 |
| Kgs | 0 | 907 | 1814 | 2722 | 3855 | |
| Line speed | M/min | 7,8 | 4,88 | 3,63 | 2,98 | 2,44 |
| Motor current | Amps | 80 | 130 | 180 | 230 | 290 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 8500 | 6640 | 5600 | 4800 | |
| Kgs | 3855 | 3012 | 2540 | 2177 | ||
| Cable capacity per layer | M | 6 | 13,2 | 22 | 28 | |
