€155.00

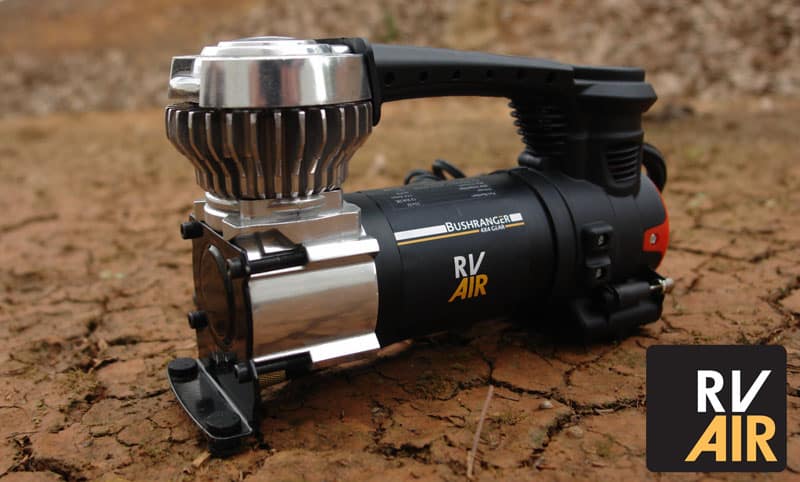

COMPACT. QUALITY. PERFORMANCE. 52 Litres Per Minute Aluminium Alloy Cylinder Stainless Steel Valves Gearless Direct Drive Built-in Pressure Gauge Permanently Lubricated Bearings Heavy Duty Copper Plated Tyre Chuck PTFE Teflon Piston Rings Super Bright LED Work Light Oil-less Design Three...
Περιγραφή
COMPACT. QUALITY. PERFORMANCE.
- 52 Litres Per Minute
- Aluminium Alloy Cylinder
- Stainless Steel Valves
- Gearless Direct Drive
- Built-in Pressure Gauge
- Permanently Lubricated Bearings
- Heavy Duty Copper Plated Tyre Chuck
- PTFE Teflon Piston Rings
- Super Bright LED Work Light
- Oil-less Design
- Three piece inflation Kit suits most inflatable gear
- 4.5m Fused Power Cord with Battery Clam
Specifications:
| Part Number: | 55×32 | RRP : | AUD $120.00 Each |
| Flow Rate : 13.8 Volts DC |
52.0 LPM @ 0 psi | Duty Cycle : | 33.33% @22°C & 30psi |
| Max. Pressure : | AUD 60 psi | Warranty: | 5 Year Warranty |
| Voltage : | 12 Volt DC | Dimensions: | 23cm Long x 7.6cm Wide x 14cm Tall |
Typical Tyre Inflation Rates |
|
| PSI Change | 195/70R14 |
| 0 to 30 PSI | 2 Min. 00 Sec. |
| 15 to 30 PSI | 1 Min. 00 Sec. |
| PSI Change | 225/60R18 |
| 0 to 30 PSI | 2 Min. 50 Sec. |
| 15 to 30 PSI | 1 Min. 30 Sec. |
| PSI Change | 31″ x 10.5″ |
| 0 to 30 PSI | 4 Min. 30 Sec. |
| 15 to 30 PSI | 2 Min. 15 Sec. |
| PERFORMANCE DATA | |||||
| PSI | CFM | A | bar | LPM | A |
| 0 | 1.83 | 9 | 0 | 52.0 | 9 |
| 10 | 1.55 | 10 | 1.0 | 40.0 | 11 |
| 20 | 1.34 | 12 | 2.0 | 33.0 | 13 |
| 30 | 1.20 | 13 | 3.0 | 29.5 | 14 |
| 40 | 1.09 | 14 | 4.0 | 28.5 | 14 |
| 50 | 0.99 | 14.5 | |||
| 60 | 0.88 | 14 | |||
