Προβολεις ζευγαρι Solis 21

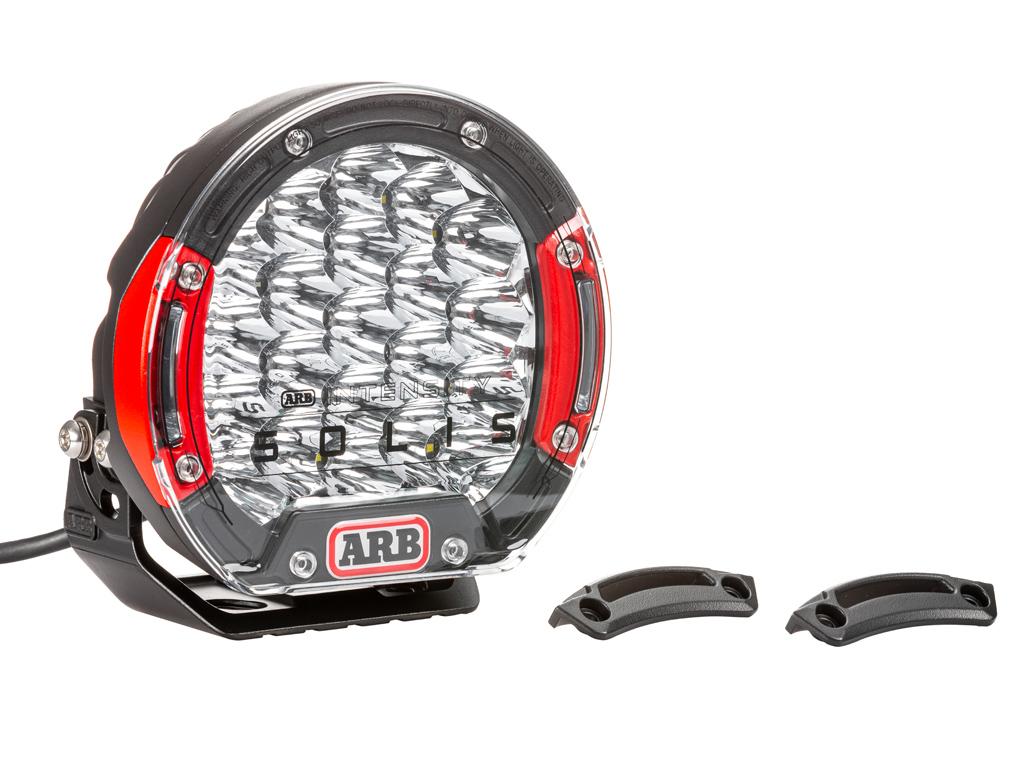

The ARB Intensity Solis 21 lamps are the latest proposition from a well-known Australian manufacturer.

Solis 21 is a smaller version of Solis 36 lamps, with light power control, one version of Combo optics and, most importantly, EU approval.

Benefits:

– E-Mark, UN ECE R112 / R149 approval (approval is valid only for on-road 1-3 lighting modes)
– 21 LEDs OSRAM 6 x 5 W + 15 x 4 W
– five adjustable brightness levels
– light color very similar to daylight 5700K

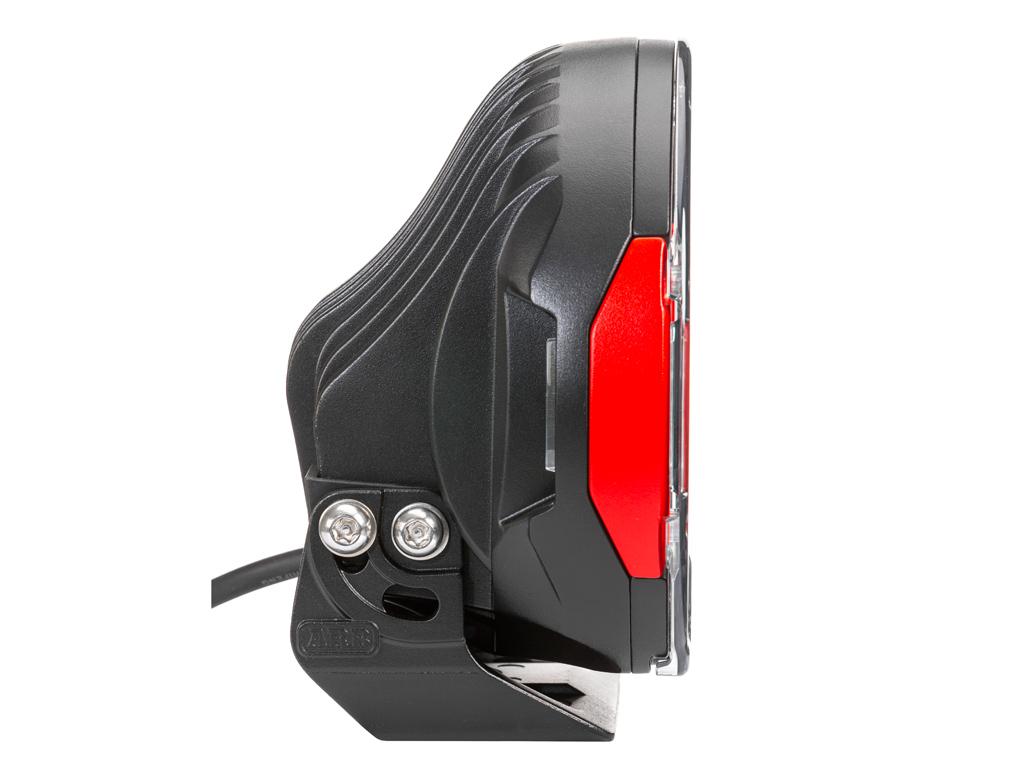

– solid aluminum housing with adjustable aluminum mounting
– polycarbonate, replaceable cover to protect against damage

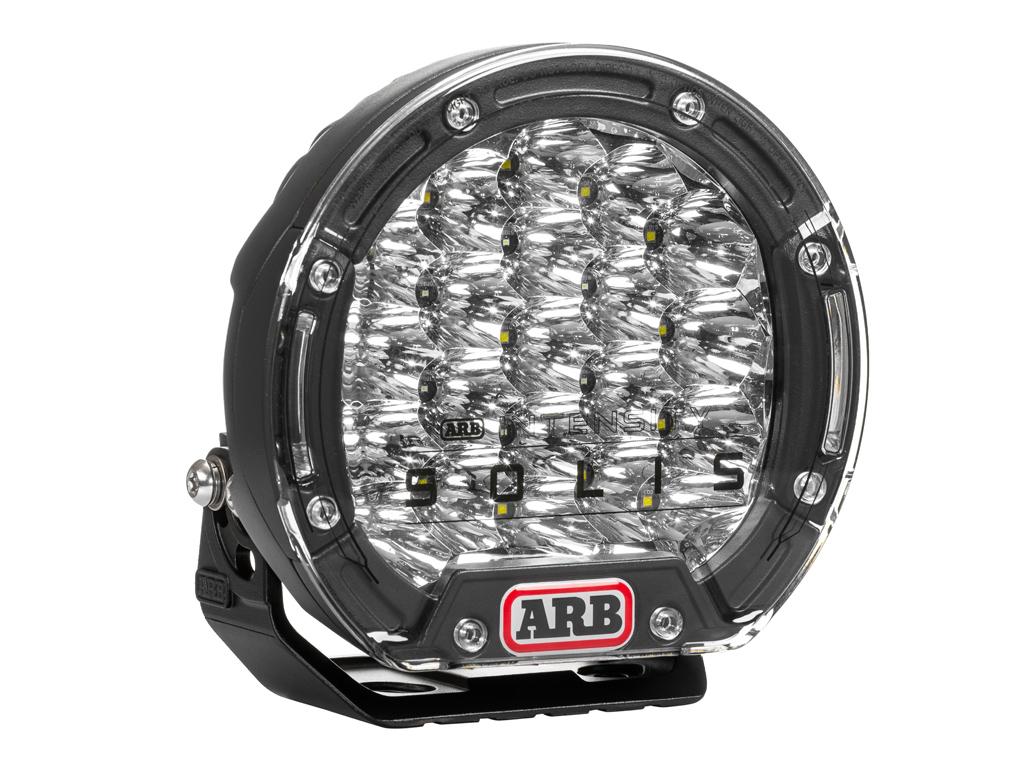

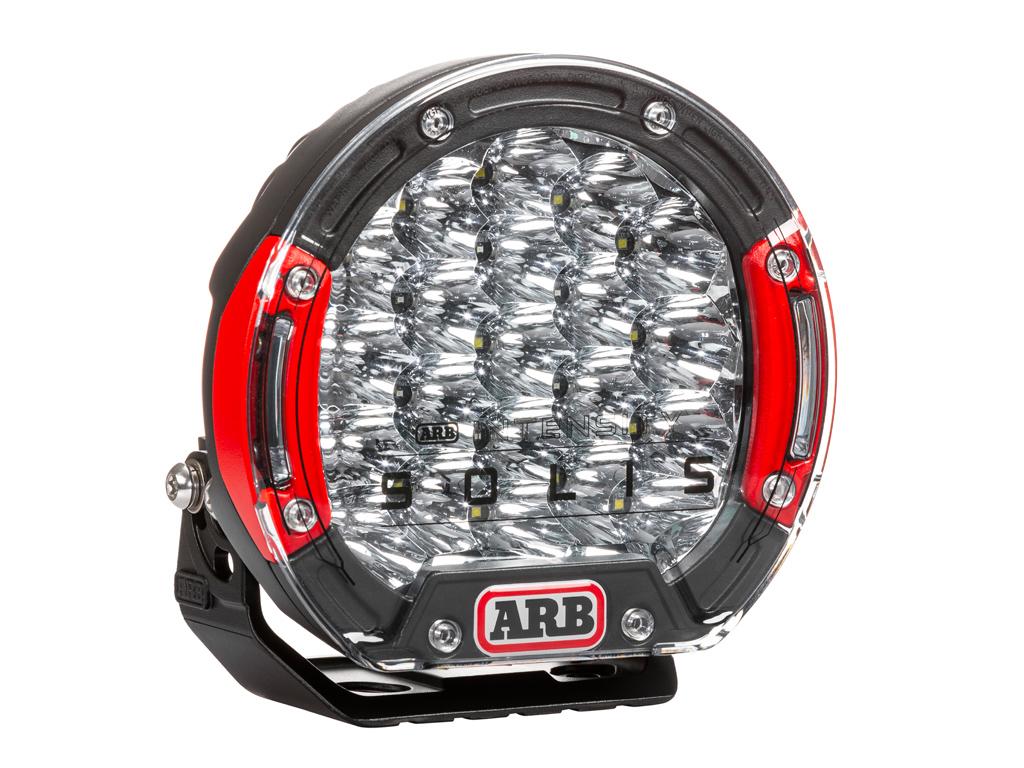

– interchangeable outer rings in two colors, black and red
– cable with hermetic cube included
– lamps can be controlled by a LINX controller

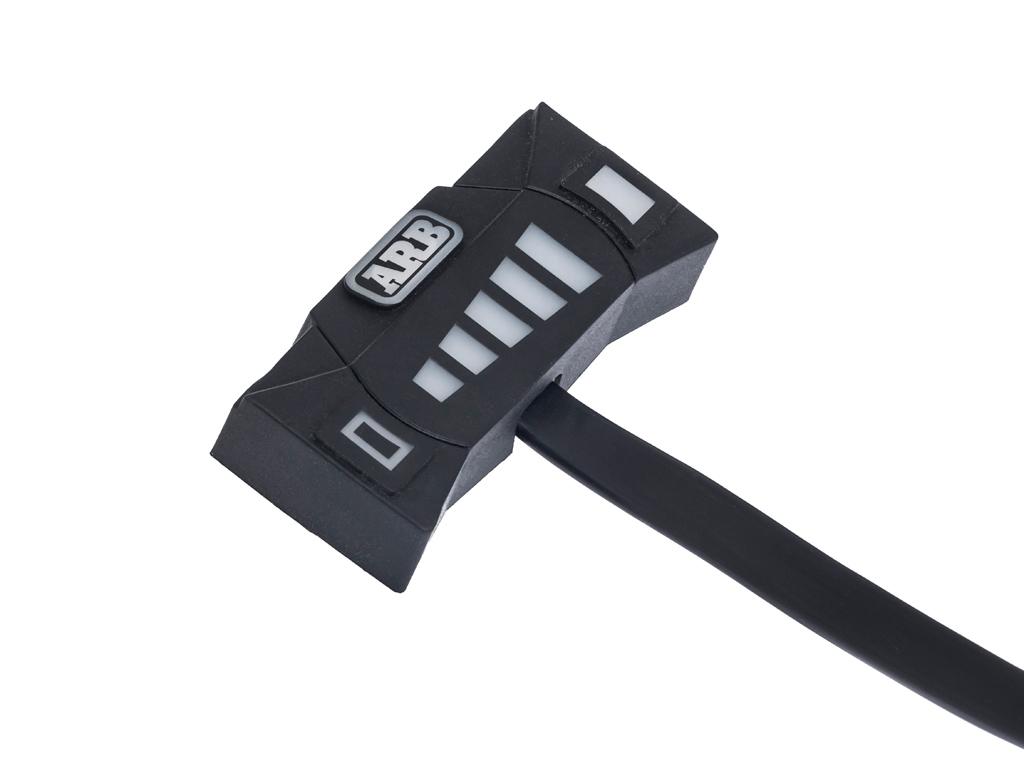

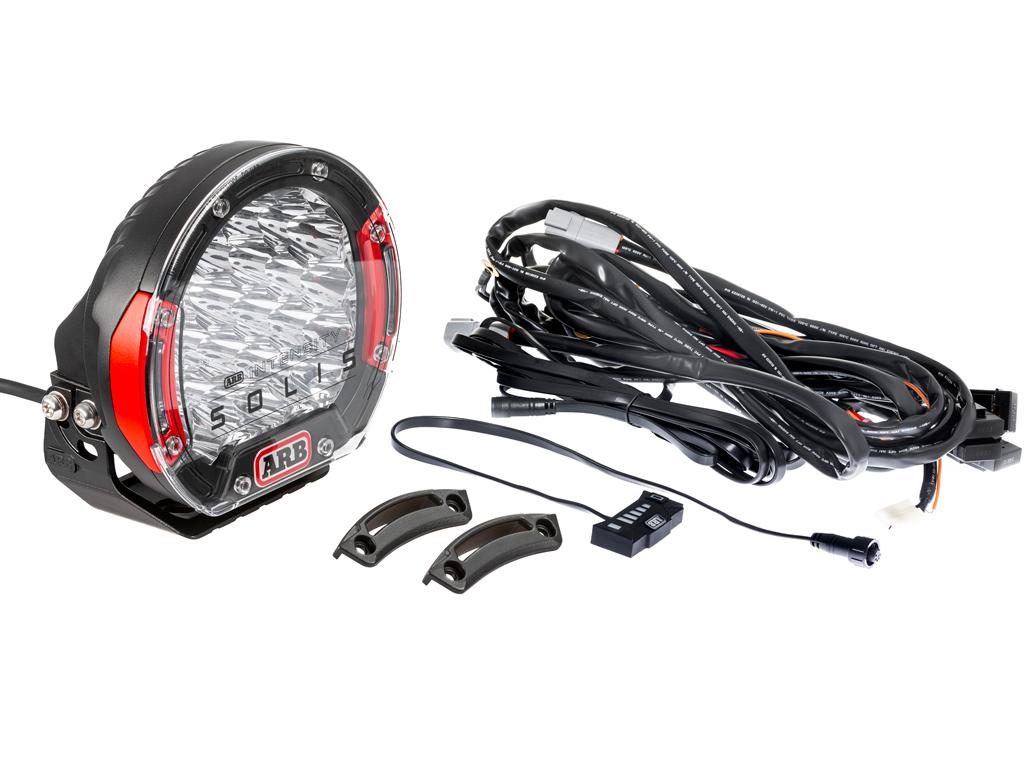

The product includes two lamps , two transparent plastic covers, two sets of fasteners, a wiring harness and a driver regulating the brightness in the set.

CATALOG NUMBER: SJB21EUX2

Technical data:

Data for a single lamp:

Dimensions:
– diameter 190 mm
– height: 192 mm
– width: 190 mm
– depth: 114mm

Power supply: 10-30V
Power consumption: from 2 to 6.2 A at 13.2V depending on the selected mode

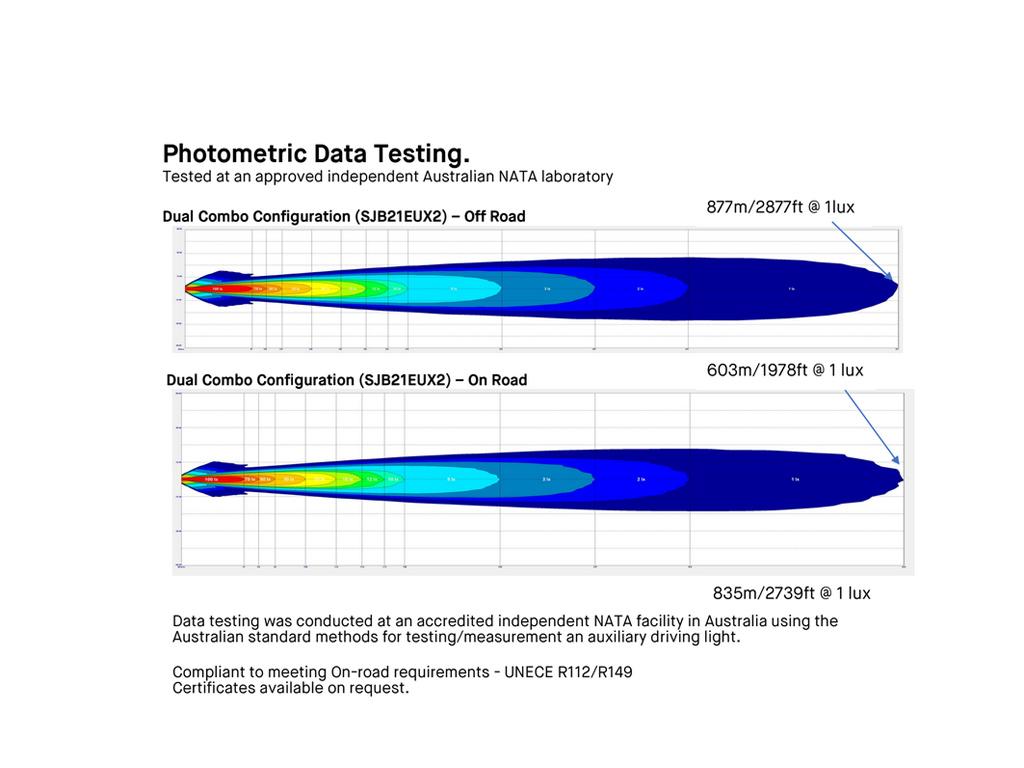

Light range:
mode # 3 (approval) – 1 lux at 426 m, 1 lux at 603 m with two lamps
mode # 5 (off-road only) – 1 lux at 620 m, 1 lux at 877 m with two lamps
Efficiency (raw): 9133 lumens
Service life: 50,000h

Working temperature: -40 ° C to 65 ° C
Tightness: IP68
Weight: 2.73 kg
Power: 30 – 82 W.

Beam angle: 9 °.
Light color: 5700K

Warranty: 36 months
