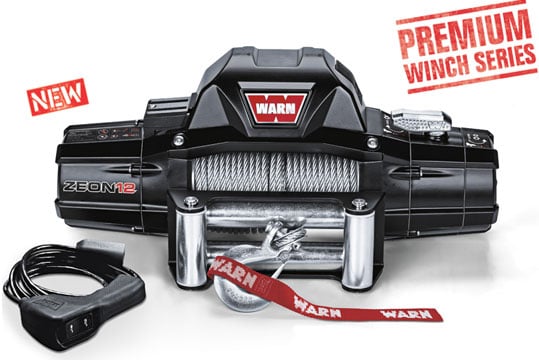

Νέος Εργάτης από την Warn , μην σας ξεγελάει το απίστευτο desigh που έχει , είναι ανθεκτικός , είναι γερός , είναι αντοχής , είναι φτιαγμένος για τα δύσκολα ! 12,000 lb. (5443 kg) single-line pulling capacity. Includes 80 of...
Περιγραφή
Νέος Εργάτης από την Warn , μην σας ξεγελάει το απίστευτο desigh που έχει , είναι ανθεκτικός , είναι γερός , είναι αντοχής , είναι φτιαγμένος για τα δύσκολα !
- 12,000 lb. (5443 kg) single-line pulling capacity.
- Includes 80 of durable 3/8″ galvanized steel wire rope.
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
- Gear train and motor deliver reliable pulling power that is fast, and quieter than ever.
- Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
- Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
- Backed by the WARN Limited Lifetime Warranty.
- * Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)
ZEON 12 SPECS/PART NUMBER
Part number: 89660 (CE, International sales only)
Rated line pull: 12,000 lbs. (5443 kg) single-line
Motor: 12V DC, series wound
Electrical controls: Contactor
Remote Control: Remote switch, 12 (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 216:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.15″/9.0″ (80mm/229mm)
Weight (kit shipping): 98 lbs. (44 kg)
Rope: 3/8″ x 80 (9.52mm x 24.38m) steel
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72″ (1.83m)
Finish: Satin-black powder coat
Warranty: Limited lifetime
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 30 (9.4) | 50 amps | 1/12000 (5440) |
| 2000 (910) | 13.4 (4.1) | 128 amps | 2/9894 (4488) |
| 4000 (1810) | 10.1 (3.1) | 196 amps | 3/8117 (3682) |
| 6000 (2720) | 7.9 (2.4) | 257 amps | 4/7324 (3322) |
| 8000 (3630) | 6.1 (1.8) | 316 amps | 5/6484 (2941) |
| 10000 (4536) | 4.5 (1.4) | 375 amps | |
| 12000 (5443) | 3.1 (0.9) | 438 amps | |
Above performance specs are based on first layer of drum
Winch Dimensions:
Integrated configuration: 24.25″ L x 7.15″ D x 10.52″ H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25″ L x 7.15″ D x 7.84″ H
(615.9mm L x 181.6mm D x 199.02mm H)
Mounting Bolt Pattern: 10.0″ x 4.5″ (254mm x 114.3mm)
Το προϊόν εξαιρείται τηε προσφοράς .
