€695.00

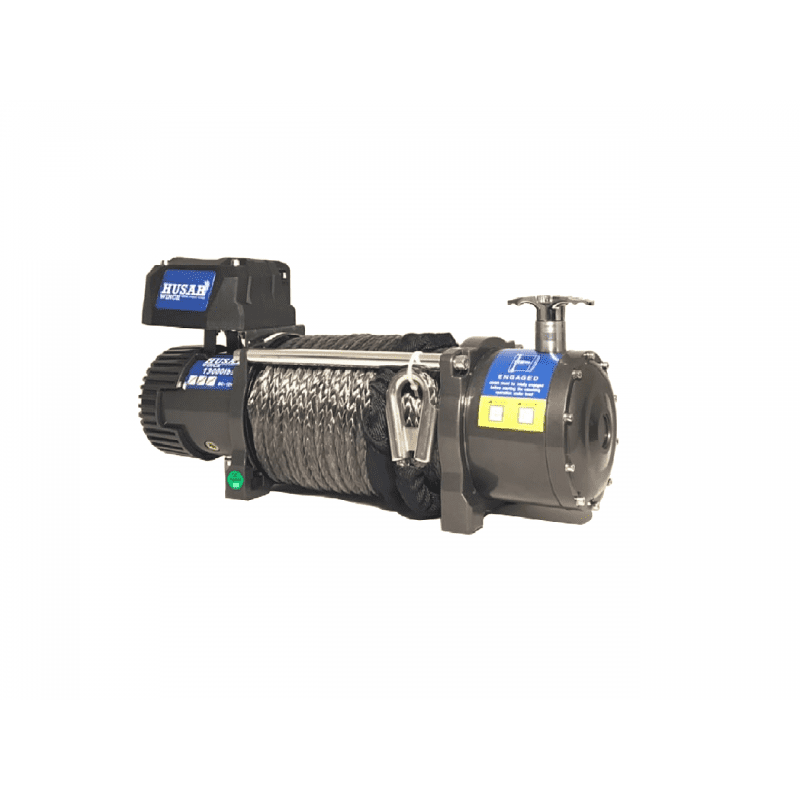

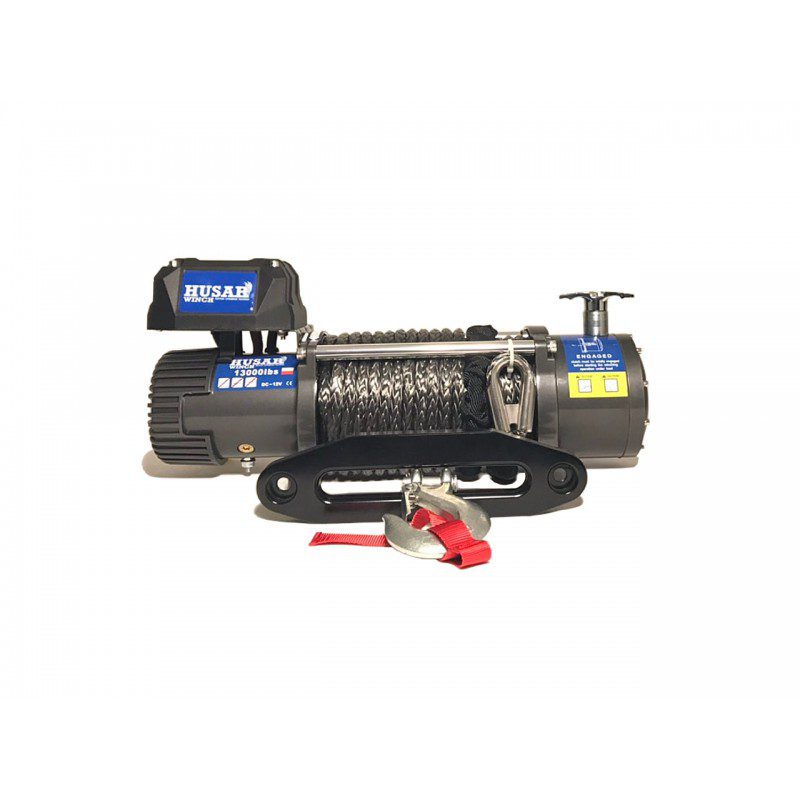

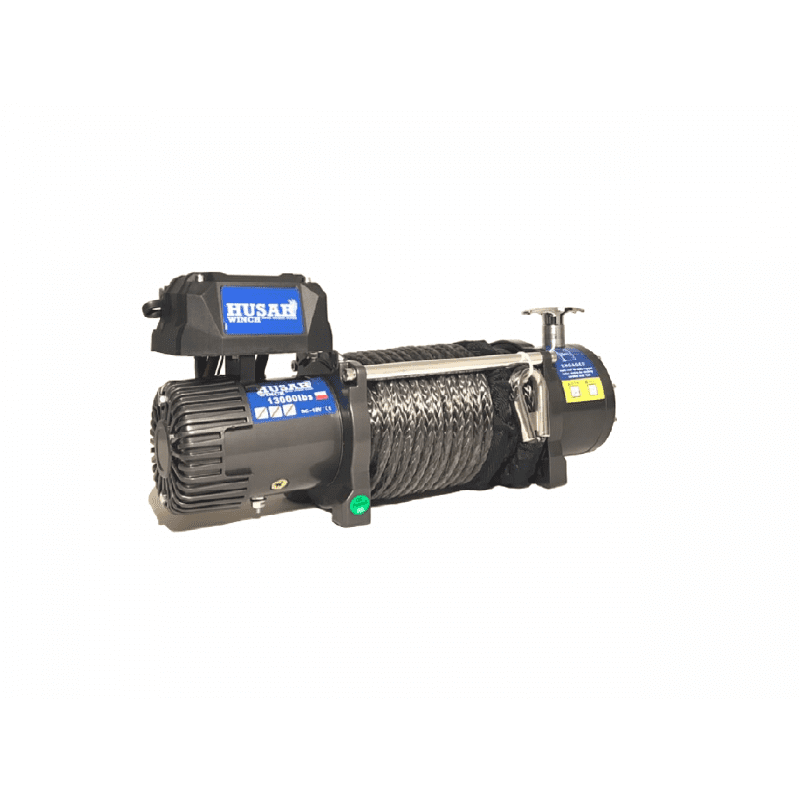

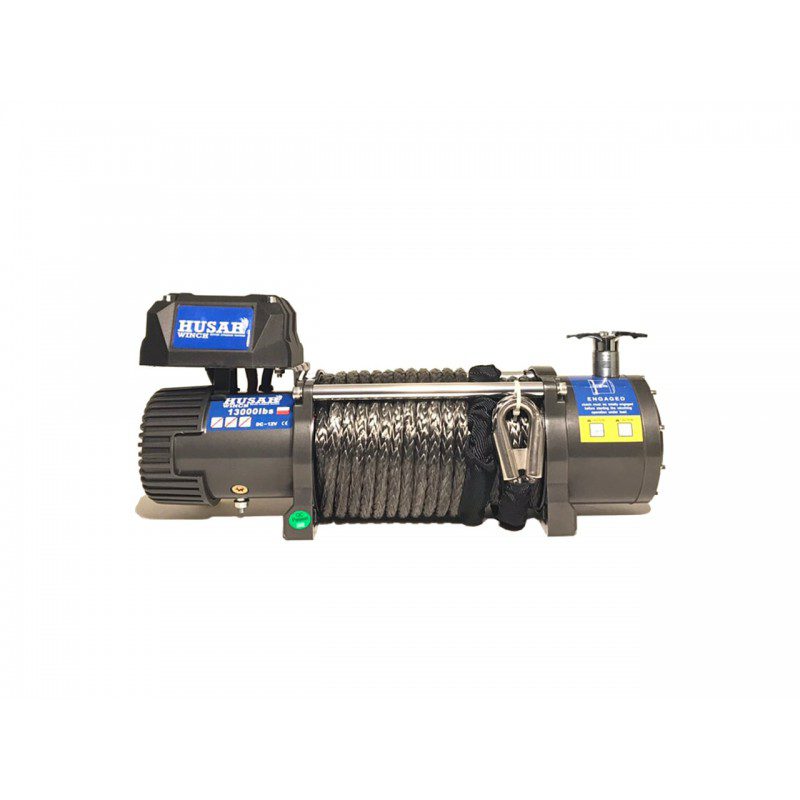

BST 13000lbs Technical specifications Pull capacity(single line) 13000lbs / 5897 kgs Motor 12V / 24V 6.5 KM / 4,5 Kw 8,5KM/6,4kW Controls Wired / wireless remote control Gear 3-stage planetary Gear ratio 265:1 Brake Automatic Rope 25m x Ø 10...
Περιγραφή
| BST 13000lbs | Technical specifications | ||
| Pull capacity(single line) | 13000lbs / 5897 kgs | ||
| Motor 12V / 24V | 6.5 KM / 4,5 Kw 8,5KM/6,4kW | ||
| Controls | Wired / wireless remote control | ||
| Gear | 3-stage planetary | ||
| Gear ratio | 265:1 | ||
| Brake | Automatic | ||
| Rope | 25m x Ø 10 mm | ||
| Fairlead | 4-ways rollers fairlead | ||
| Net weight | 31 kg | ||
| Mounting bolt pattern | 254mm x 114,3mm | ||
| Dimensions | (L x W x H) 546mm × 160mm × 218mm | ||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 4000 | 6000 | 10000 | 13000 |
| Kgs | 0 | 1814 | 2722 | 4536 | 5897 | |
| Line speed | M/min 12V | 6,8 | 3,8 | 3 | 2,1 | 1,7 |
| M/min 24V | 10 | 7 | 5,5 | 3,2 | 2,7 | |
| Motor current | Amps 12V | 80 | 170 | 210 | 310 | 380 |
| Amps 24V | 45 | 70 | 95 | 185 | 250 | |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 13000 | 9900 | 8300 | 7000 | |
| Kgs | 5897 | 4490 | 3765 | 3175 | ||
| Cable capacity per layer | M | 6 | 13 | 22 | 25 | |
