€595.00

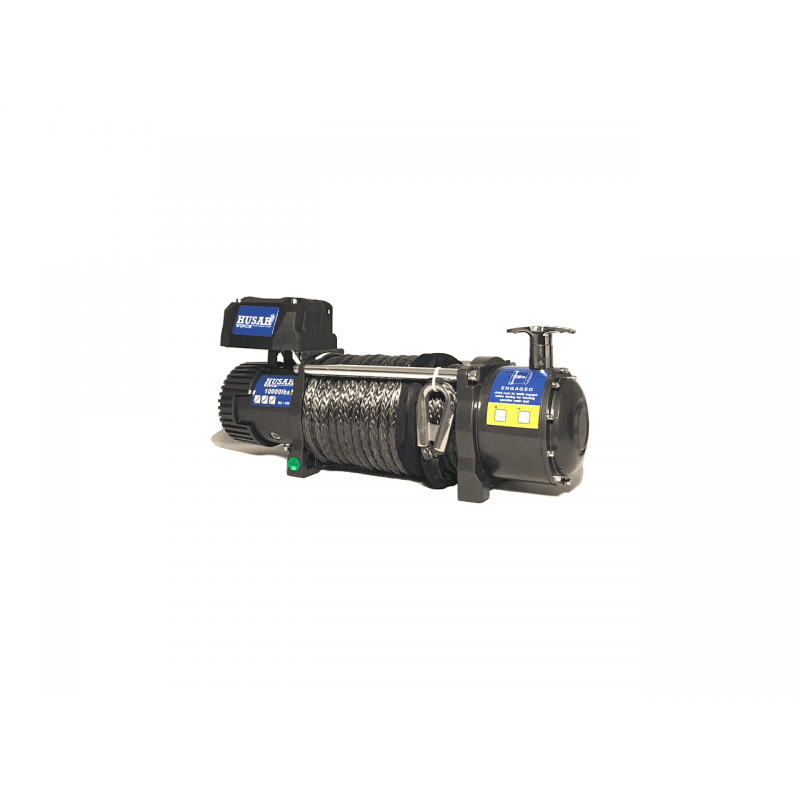

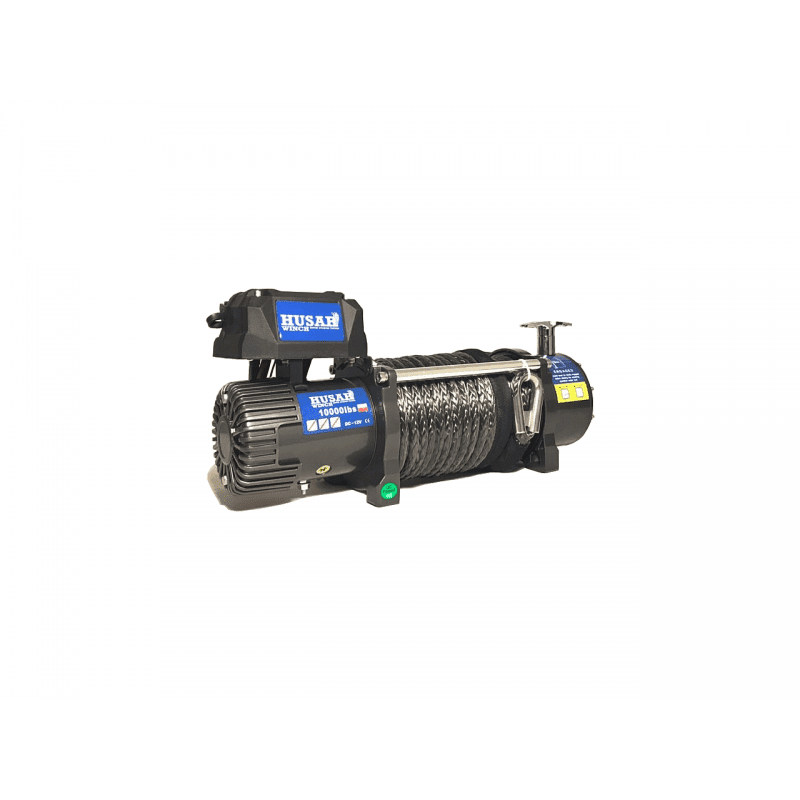

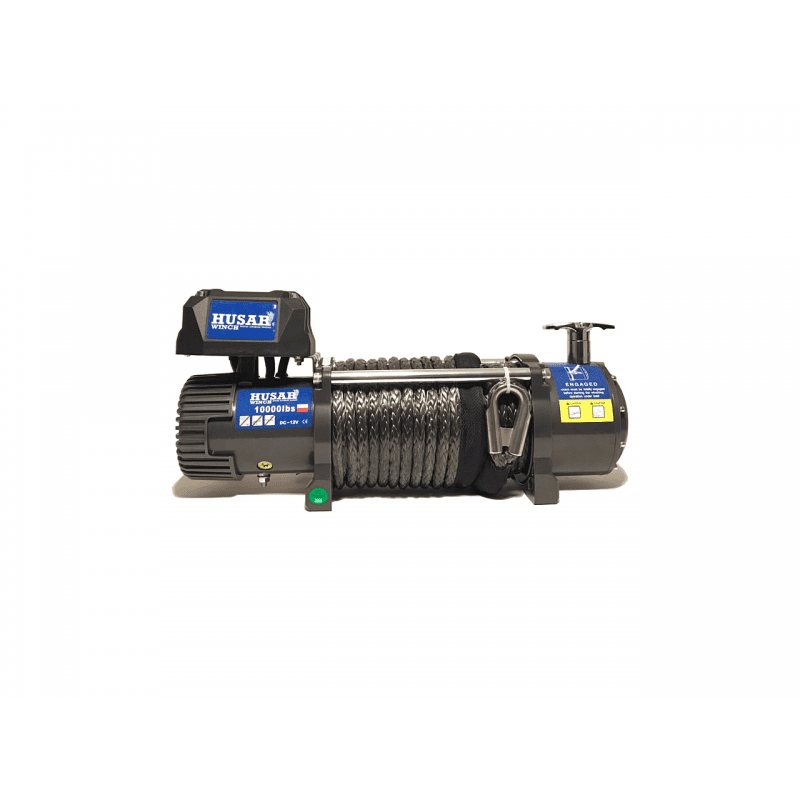

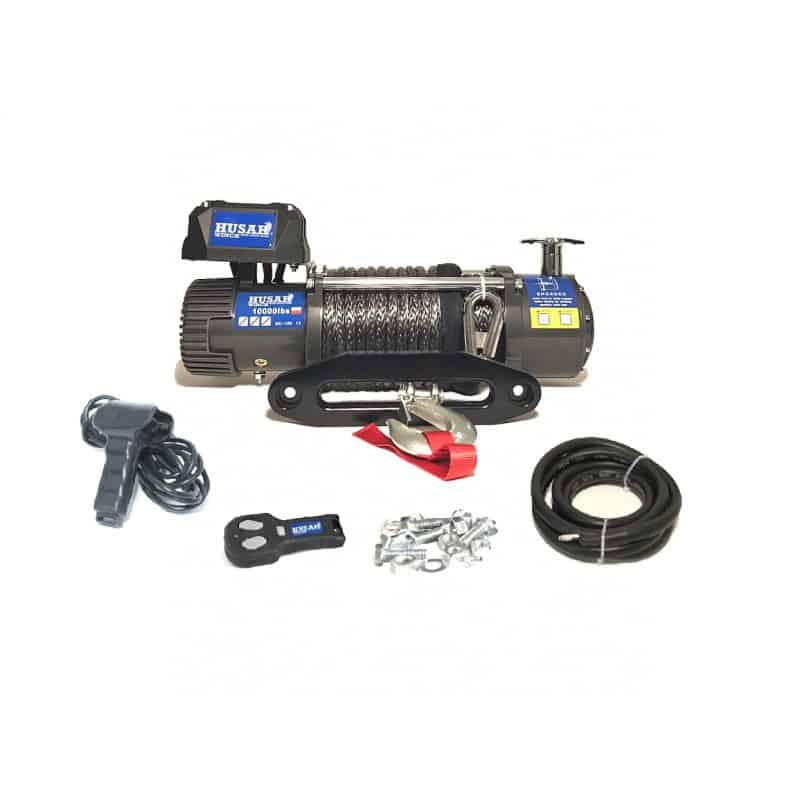

BST 10000lbs Technical specifications Pull capacity(single line) 10000lbs / 4536 kgs Motor 12V 5.5 hp / 4,0 kw Controls Wired / wireless remote control Gear 3-stage planetary Gear ratio 218:1 Brake Automatic Rope 28m x Ø 8,5 mm Fairlead hawse...
Περιγραφή
| BST 10000lbs | Technical specifications | ||
| Pull capacity(single line) | 10000lbs / 4536 kgs | ||
| Motor 12V | 5.5 hp / 4,0 kw | ||
| Controls | Wired / wireless remote control | ||
| Gear | 3-stage planetary | ||
| Gear ratio | 218:1 | ||
| Brake | Automatic | ||
| Rope | 28m x Ø 8,5 mm | ||
| Fairlead | hawse fairlead | ||
| Net weight | 30 kg | ||
| Mounting bolt pattern | 254mm x 114,3mm | ||
| Dimensions | (L x W x H) 546mm × 160mm × 218mm | ||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 2000 | 6000 | 8000 | 10000 |
| Kgs | 0 | 907 | 2722 | 3629 | 4536 | |
| Line speed | M/min | 6,8 | 4,88 | 2,98 | 2,44 | 1,8 |
| Motor current | Amps | 80 | 130 | 230 | 290 | 350 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 10000 | 8800 | 7800 | 6600 | |
| Kgs | 4535 | 3990 | 3538 | 2994 | ||
| Cable capacity per layer | M | 6 | 13,2 | 22 | 28 | |
