€895.00

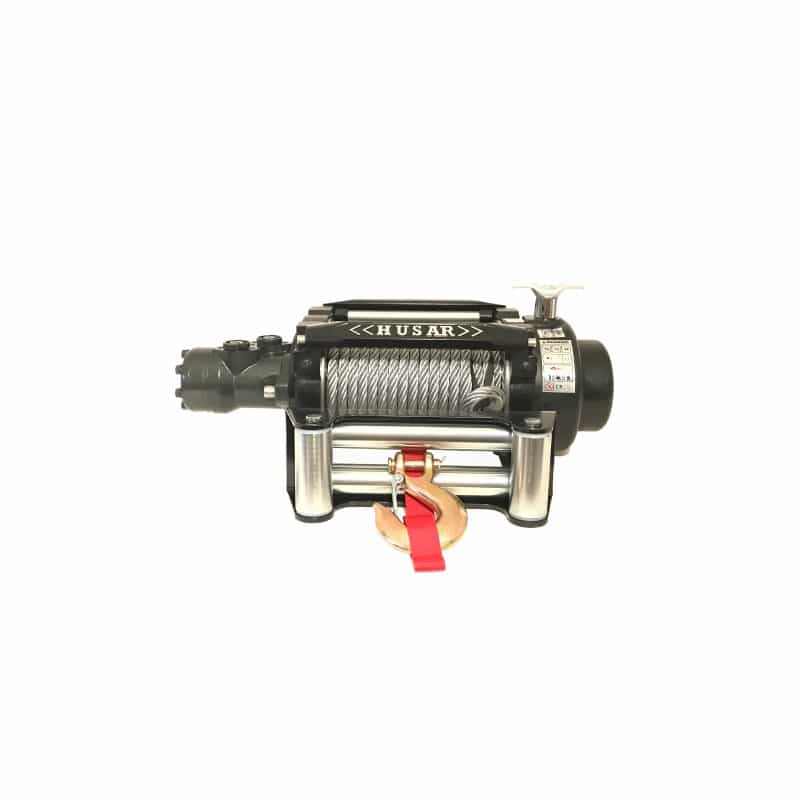

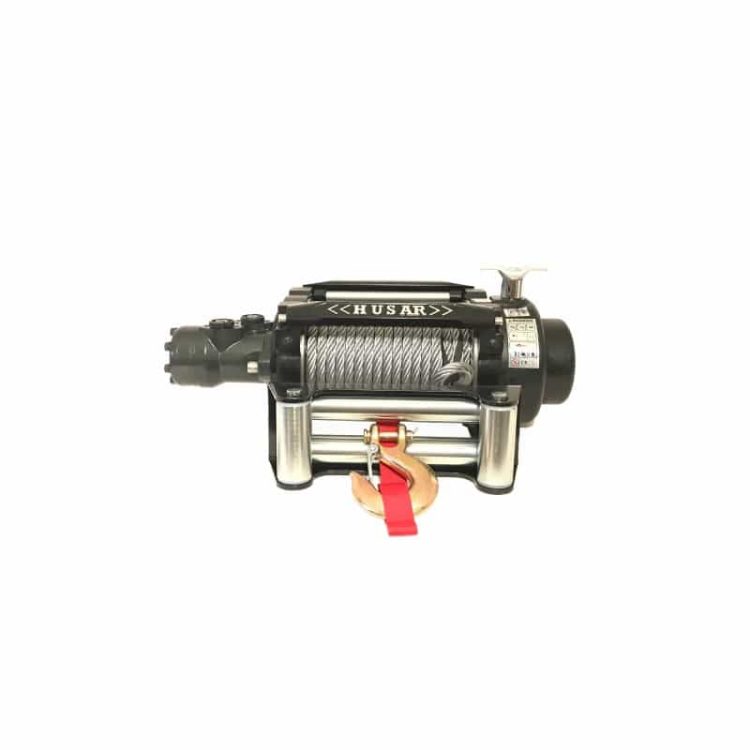

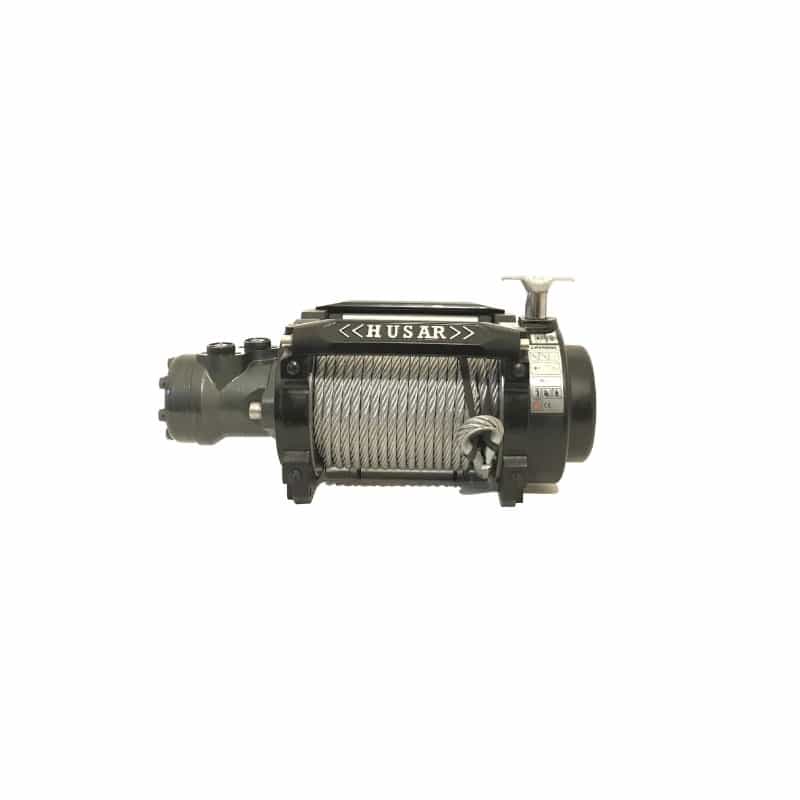

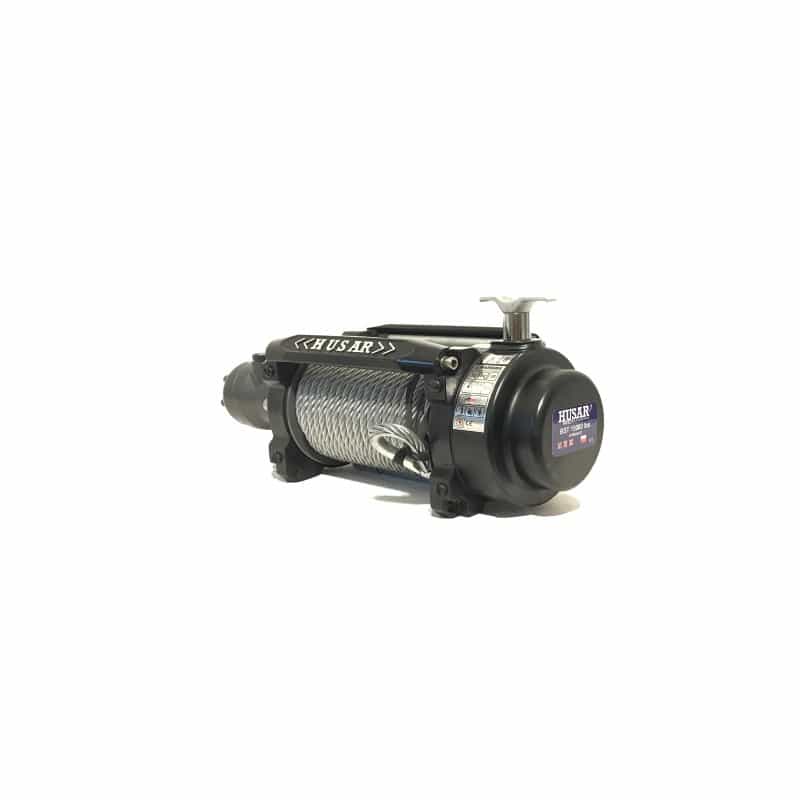

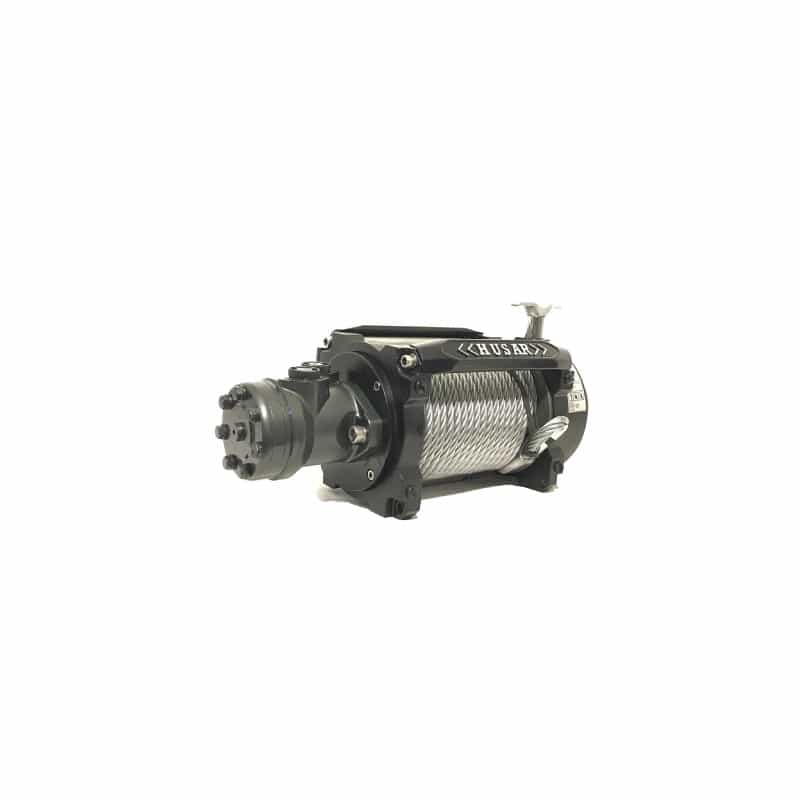

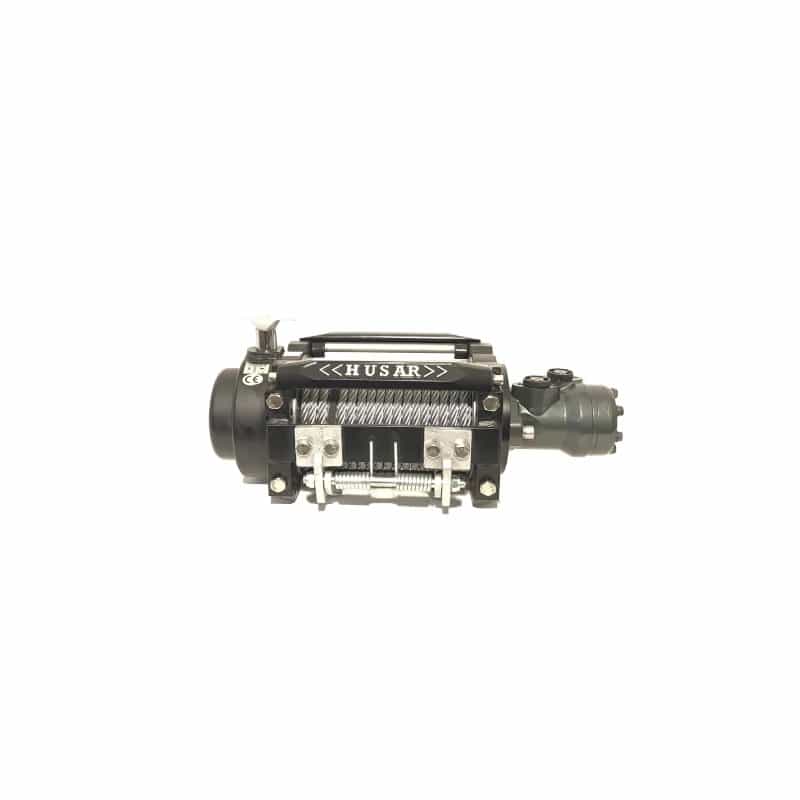

BST H 15000lbs Technical specifications Pulling rate 15000 lbs (56804kg) Motor displacement 65ml/r Oil flow 5～45L/min Pressure 14Mpa Gear 2 -stage planetary Gear ratio 26:1 Rope 25,5m x Ø 11 mm Fairlead 4-ways rollers fairlead Net weight 65 kg Mounting...
Περιγραφή
| BST H 15000lbs | Technical specifications | ||
| Pulling rate | 15000 lbs (56804kg) | ||
| Motor displacement | 65ml/r | ||
| Oil flow | 5～45L/min | ||
| Pressure | 14Mpa | ||
| Gear | 2 -stage planetary | ||
| Gear ratio | 26:1 | ||
| Rope | 25,5m x Ø 11 mm | ||
| Fairlead | 4-ways rollers fairlead | ||
| Net weight | 65 kg | ||
| Mounting bolt pattern | 254mm×114.3mm | ||

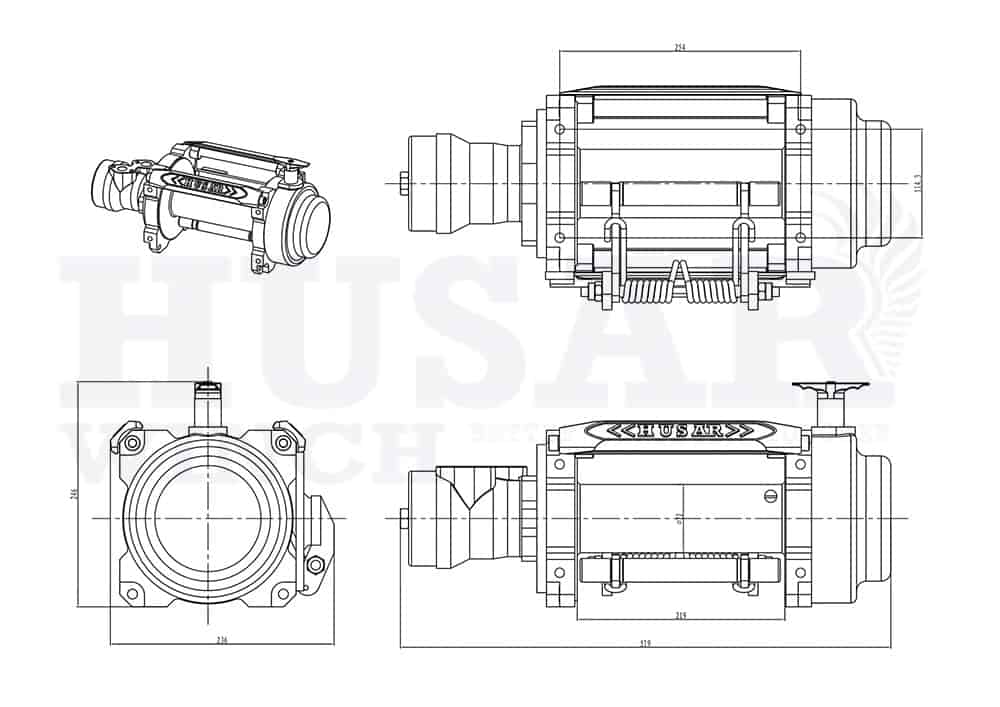

| Dimensions | (L x W x H) 519mm × 226mm × 262mm | ||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 5000 | 10000 | 12000 | 15000 |
| Kgs | 0 | 1361 | 2722 | 4536 | 5443 | |
| Line speed | m/min | 0,7 | 1,4 | 2,7 | 4,6 | 5,3 |
| Pressure | PSI | 290,1 | 623,7 | 1261,8 | 1450,3 | 1885,4 |
| Oil flow | l/min | 5 | 10 | 20 | 35 | 50 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 15000 | 12120 | 10168 | 8757 | |
| Kgs | 6804 | 5498 | 4612 | 3972 | ||
| Cable capacity per layer | M | 5 | 11,3 | 18,6 | 25,5 | |
