€450.00
Ο Φορτιστής της REDARC είναι ιδανικος για να φορτίσετε την δεύτερη μπαταρία του αυτοκινήτου ή του τρειλερ. The REDARC BCDC1220 is a 12 Volt 20 Amp In-vehicle DC to DC battery charger designed to keep your battery charged whilst driving....
Περιγραφή
Ο Φορτιστής της REDARC είναι ιδανικος για να φορτίσετε την δεύτερη μπαταρία του αυτοκινήτου ή του τρειλερ.

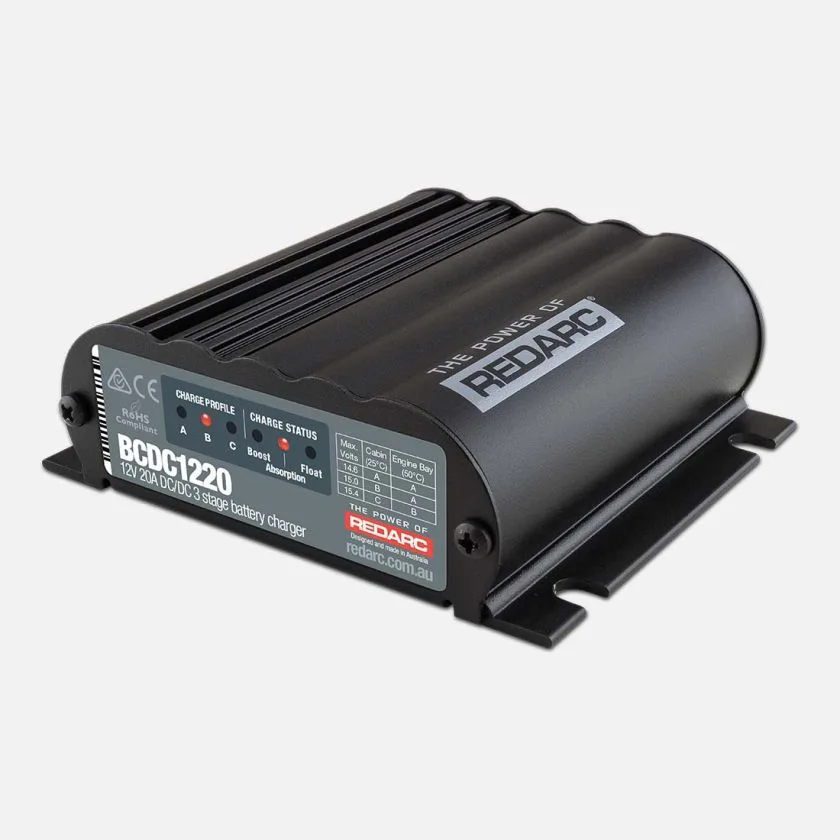

The REDARC BCDC1220 is a 12 Volt 20 Amp In-vehicle DC to DC battery charger designed to keep your battery charged whilst driving. Featuring multi-stage battery charging, the system charges your auxiliary battery from your vehicle to a proven 100%.*
*Large-capacity battery banks may require a few cycles to fully charge.
The BCDC charger will work from a wide operating range (9 – 32V) giving the option of charging from both 12V and 24V vehicle systems, and is potted and rugged making it perfect for under bonnet installations.
By providing a unique charging profile to each specific battery type, the smart charger is able to achieve and maintain 100% charge for your auxiliary battery. You can charge your auxiliary battery no matter what your battery is.
Proven and Tested
Compact in size, easy to install, and fully sealed – water, dust, and vibration are no match for the in-vehicle DC-DC charger. It can handle the roughest tracks in outback Australia and even deep water crossings at Cape York. The BCDC DC to DC battery charger is suitable for installation in harsh environments or marine applications.
With an ever-increasing number of electrical accessories and devices being used when traveling around Australia, along with more complex vehicle electrical systems than seen in years gone by, having the right DC battery charger has never been more important.
Designed, built, and tested in Australia for our unique conditions, the BCDC in-vehicle DC to DC charger won’t let you down.
Features
- Multi-Stage DC to DC Battery Charger
- Start Battery Isolator
- Fully sealed
- No fan of super quiet operation
- Charges AGM, Gel, Calcium content, VRLA, and Standard Lead Acid batteries
Mounting Brackets
In addition to the use of quality fuse kits, REDARC offers a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range. The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow, ensuring optimal performance. They have been designed to fit existing mounting points in the vehicle.
SPECIFICATIONS
SPECIFICATIONS
| WARRANTY | 2 Years |
|---|---|
| GTIN_BARCODE | 9338628002542 |
| BRAND | REDARC |
| BATTERY CHEMISTRY | Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
| CONTINUOUS RATING | 12A |
| POWER TYPE – AC DC | DC TO DC |
| NOMINAL OUTPUT POWER | 148W (12V vehicle) / 294W (24V vehicle) |
| INPUT FUSE RATING | 16A to 23A (Not supplied) |
| SUITABLE FOR 12V SYSTEMS | Yes |
| SUITABLE FOR 24V SYSTEMS | Yes |
| MPPT SOLAR REGULATOR | No |
| CABIN/ CANOPY INSTALL | Yes |
| NO LOAD CURRENT | <100mA |
| TRAILER INSTALL | Yes |
| ENGINE BAY INSTALL | Yes |
| MAX. CHARGING VOLTAGE | 15.3V |
| OUTPUT FUSE RATING | 31A (Not supplied) |
| OPERATING TEMPERATURE | -4°F to 175°F |
| OUTPUT VOLTAGE | 12V DC |
| MAX. RATED OUTPUT CURRENT | 11A (12V vehicle) / 20A (24V vehicle) |
| INPUT VOLTAGE | 9 – 32V |
| STANDBY CURRENT | <5mA |
| CONNECTOR TYPE | Bare wire |
| WEIGHT | 30 oz |
| WIDTH | 4.7″ |
| HEIGHT | 1.5″ |
| DEPTH | LENGTH | 3.9″ |
MANUAL
