€450.00
Ο Φορτιστής της REDARC είναι ιδανικος για να φορτίσετε την δεύτερη μπαταρία του αυτοκινήτου ή του τρειλερ σε οχηματα με ρύθμιση φόρτισης από το δυναμό μέσω εγκεφάλου . The REDARC BCDC1220-IGN is a 12 Volt 20 Amp DC-DC charger featuring...
Περιγραφή
Ο Φορτιστής της REDARC είναι ιδανικος για να φορτίσετε την δεύτερη μπαταρία του αυτοκινήτου ή του τρειλερ σε οχηματα με ρύθμιση φόρτισης από το δυναμό μέσω εγκεφάλου .

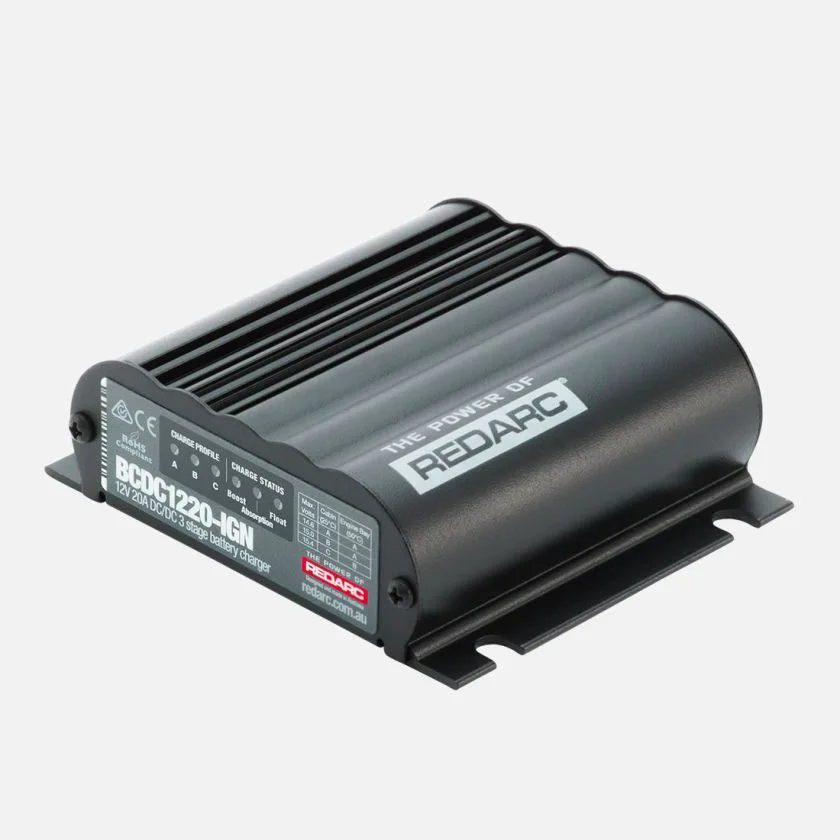

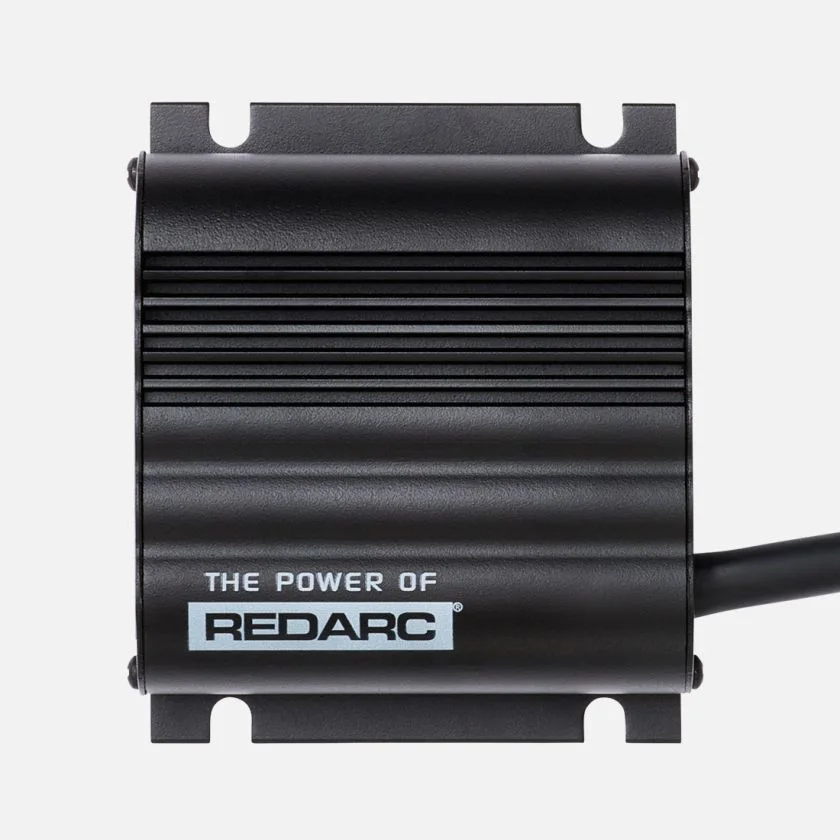

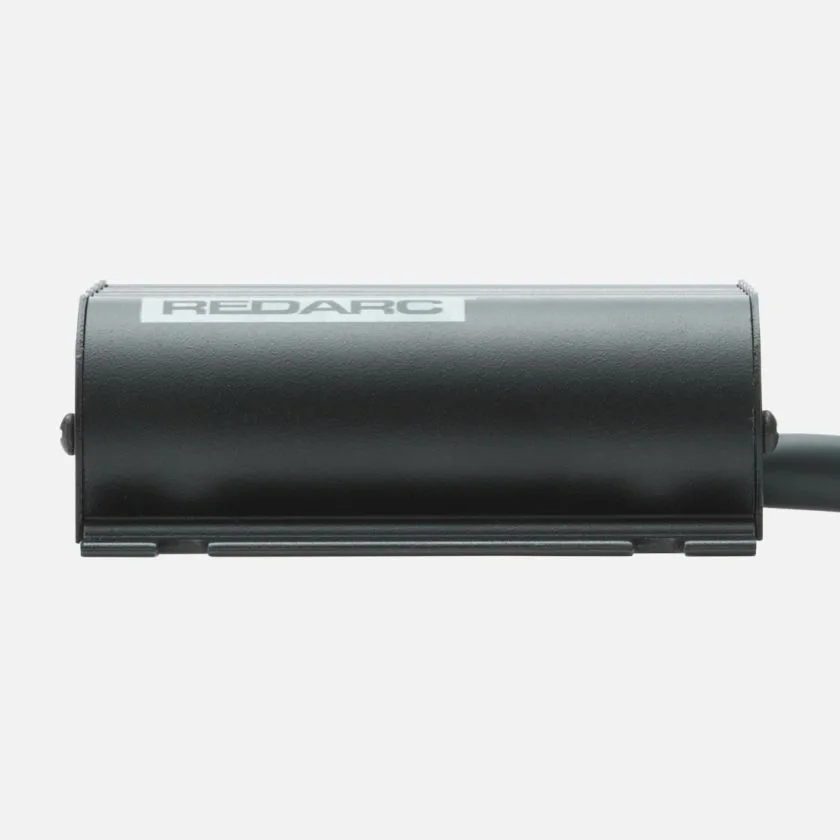

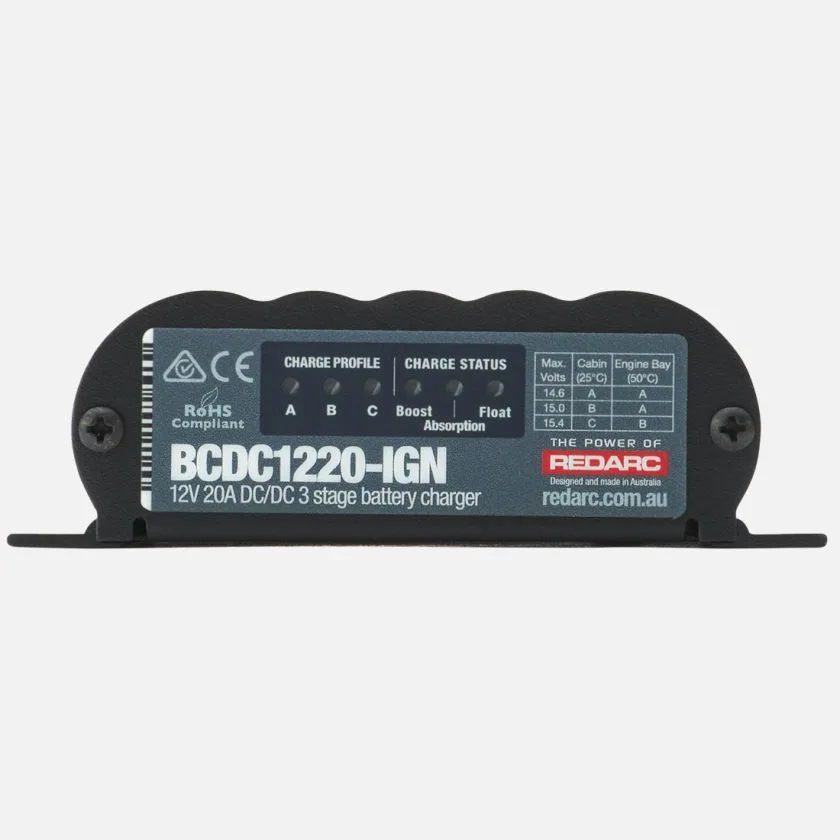

The REDARC BCDC1220-IGN is a 12 Volt 20 Amp DC-DC charger featuring technology designed to fully charge a lead acid auxiliary battery. It’s suitable for vehicles fitted with an ECU-controlled variable voltage alternator and fully potted to survive and thrive against heat, water, dust, and vibration.
The BCDC1220-IGN features a lower voltage setting so it can continue to operate with a low input voltage from the alternator.
The BCDC dual battery charger will work with a wide operating range (9 – 32V) giving the option of charging from both 12V and 24V vehicle systems.
By providing a unique charging profile for each specific battery type, the BCDC charger is able to achieve and maintain an optimal charge in auxiliary batteries whilst on the move. It will allow you to charge an auxiliary battery that is a different characteristic to the start battery.
The unit will act as a dual battery isolator and protect the start battery, should the voltage get too low.
Proven and Tested
Compact in size, easy to install, and fully sealed – water, dust, and vibration are no match for the in-vehicle DC smart charger. It can handle the roughest tracks in outback Australia and even deep water crossings at Cape York. The BCDC DC to DC battery charger is suitable for installation in harsh environments or marine applications.
With an ever-increasing number of electrical accessories and devices being used when traveling around Australia, along with more complex vehicle electrical systems than seen in years gone by, having the right battery charging solution has never been more important.
Designed, built, and tested in Australia for our unique conditions, the BCDC in-vehicle DC to DC charger won’t let you down.
Features
- Multi-Stage DC to DC Battery Charger
- Start Battery Isolator
- Fully sealed
- No fan of super-quiet operation
- Charges AGM, Gel, Calcium content, VRLA, and Standard Lead Acid batteries
- Works with Variable Voltage Alternators
Mounting Brackets
REDARC offers a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range. The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow, ensuring optimal performance. They have been designed to fit existing mounting points in the vehicle.
SPECIFICATIONS
SPECIFICATIONS
| WARRANTY | 2 Years |
|---|---|
| GTIN_BARCODE | 9338628003112 |
| BRAND | REDARC |
| BATTERY CHEMISTRY | Standard Lead Acid, Calcium content, Gel, AGM, or LiFePO4 type only |
| CONTINUOUS RATING | 12A |
| POWER TYPE – AC DC | DC TO DC |
| NOMINAL OUTPUT POWER | 149W (12V vehicle) / 294W (24V vehicle) |
| INPUT FUSE RATING | 17A to 23A (Not supplied) |
| SUITABLE FOR 12V SYSTEMS | Yes |
| SUITABLE FOR 24V SYSTEMS | Yes |
| MPPT SOLAR REGULATOR | No |
| CABIN/ CANOPY INSTALL | Yes |
| NO LOAD CURRENT | <100mA |
| TRAILER INSTALL | Yes |
| ENGINE BAY INSTALL | Yes |
| MAX. CHARGING VOLTAGE | 15.3V |
| OUTPUT FUSE RATING | 32A (Not supplied) |
| OPERATING TEMPERATURE | -4°F to 175°F |
| OUTPUT VOLTAGE | 12V DC |
| MAX. RATED OUTPUT CURRENT | 11A (12V vehicle) / 20A (24V vehicle) |
| INPUT VOLTAGE | 9 – 32V |
| STANDBY CURRENT | <5mA |
| CONNECTOR TYPE | Bare wire |
| WEIGHT | 30 oz |
| WIDTH | 4.7″ |
| HEIGHT | 1.5″ |
| DEPTH | LENGTH | 3.9″ |
