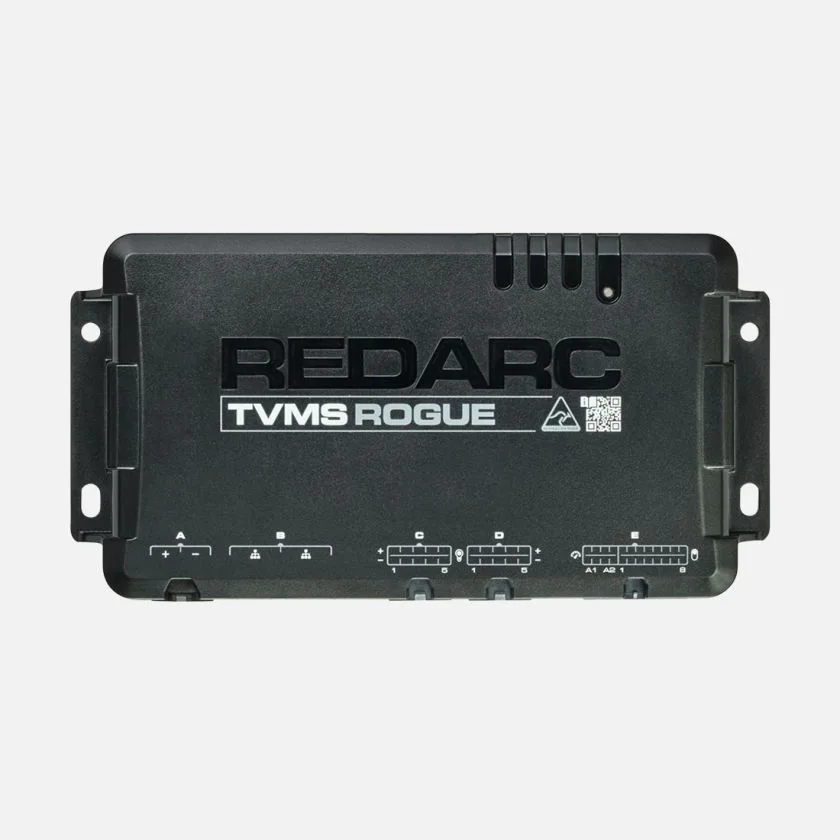

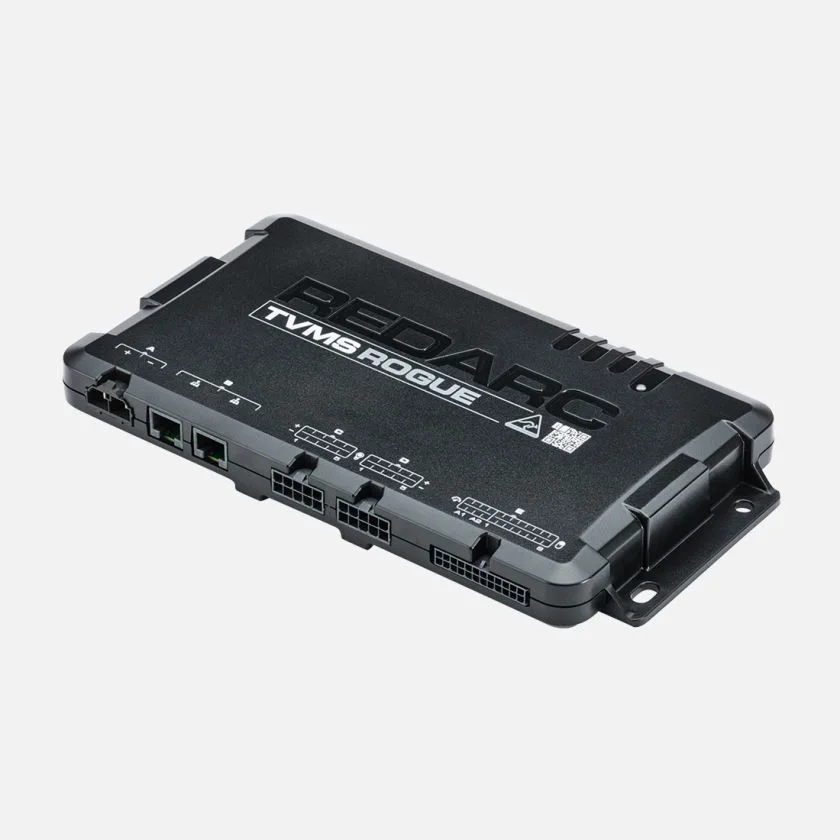

REDARC TVMS ROGUE CONTROL MODULE

REDARC TVMS ROGUE CONTROL MODULE

TOTAL CONTROL AT YOUR FINGERTIPS

RedVision by REDARC provides an unprecedented level of control and automation to your 4×4, caravan, camper, RV, or work vehicle. Control accessories such as lights, fridges, TVs, and inverters via the physical screen or your Bluetooth-connected mobile device.

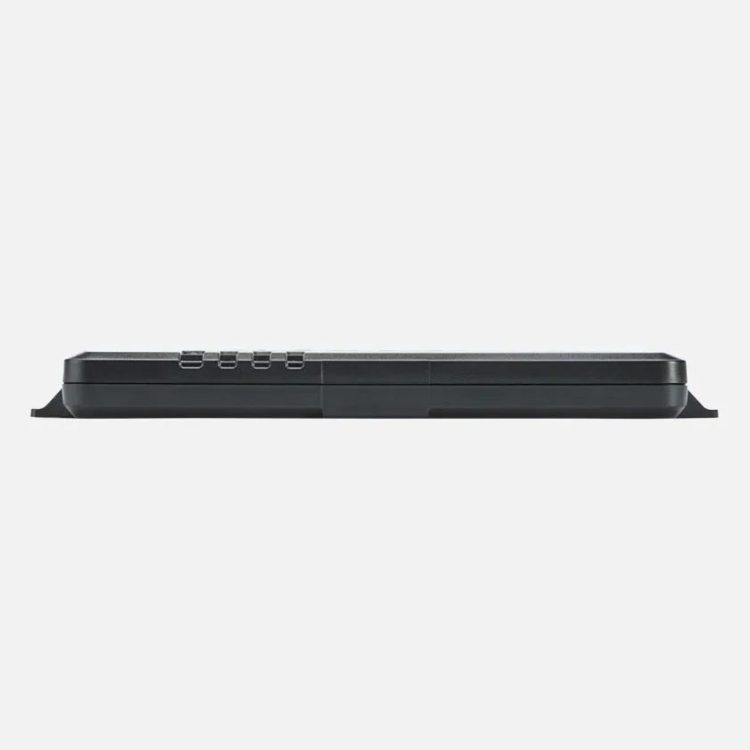

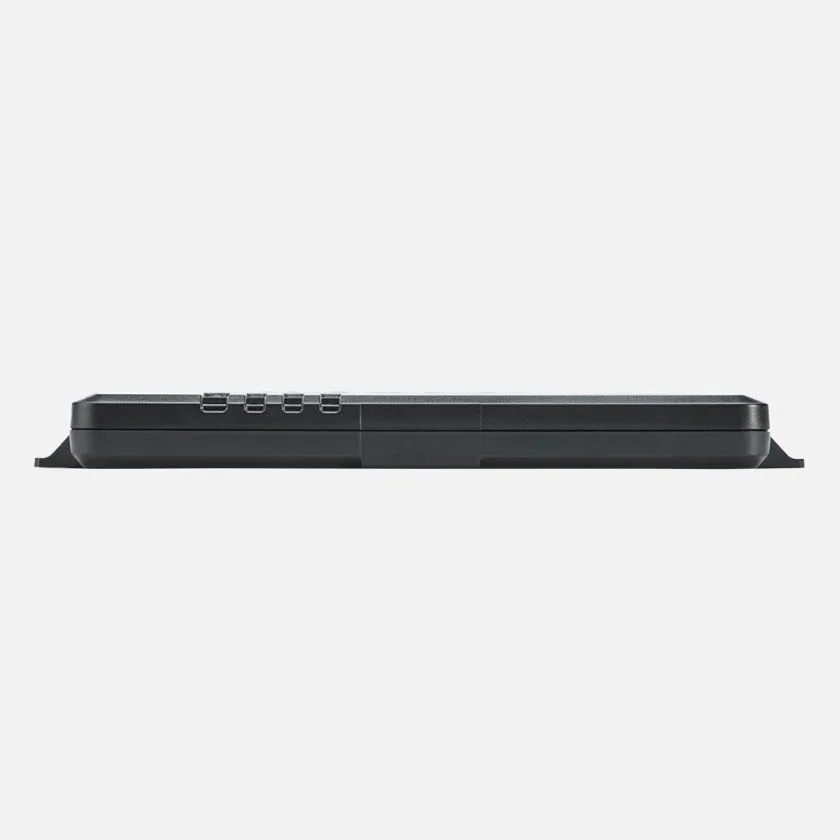

At just 25mm thick and with in-built smart fuses, the TVMS Rogue offers a compact and flexible power control solution for caravan, camper, and 4×4 applications.

MONITOR

When combined with the RedVision screen (sold separately) and the Manager30 battery management system (sold separately), the TVMS Rogue provides real-time and accurate state of charge, power input/output, and ambient temperature information.

Two analog tank-level inputs offer accurate monitoring of multiple tanks and the Rogue is compatible with most common tank-level sensors.

CONTROL

The TVMS Rogue allows complete control of multiple on-board devices including lights, fans, fridges, and pumps. Each of its 10 output channels includes dimming and the built-in switch inputs make the Rogue perfect for lighting circuits.

With the Rogue connecting to up to 8 physical switches, control is not just limited to the RedVision screen or app. It enables lights to be controlled from each room of a caravan or for the addition of reed switches to trigger lights when opening a door for example.

AUTOMATION

Save time and energy by using RedVision to automate those mundane tasks. With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.

FEATURES:

• 10x 10A dimmable outputs
• 8x inputs allow for use with physical switches
• Compact size
• On-board smart fuses
• Streamlined installation and configuration
• Fully programmable*
• Accurate analog tank-level inputs

SCREEN COMPATIBILITY

TVMS Rogue is compatible with DISP4300-RC models manufactured from January 2023 (serial numbers beginning with “23”). Displays manufactured from July 2022 to January 2023 are upgradeable (serial numbers “2207” to “2212”).

APP AVAILABILITY

*The TVMS Rogue Configurator app is available now for iOS but coming soon for Android. The configurator app is only required for initial installation and setup. The user app is available now for both iOS and Android.

SPECIFICATIONS

GTIN_BARCODE	9338628007233
BRAND	REDARC
OPERATING TEMPERATURE	-20°C to 70°C
WEIGHT	.43 kg
HEIGHT	25 mm
WIDTH	130 mm
DEPTH | LENGTH	250 mm
WARRANTY	2 Years
INPUT VOLTAGE	9 – 16V
MAX. RATED OUTPUT CURRENT	40A

MANUAL

• TVMS Rogue Instruction Manual English
