€670.00
Φορτιστής REDARC 20A για αν φορτίσετε την εφερδική μπαταρία καθως οδηγάτε ή από φωτοβολταϊκό πάνελ κατά την στάση. The BCDC2420-LV is a 24 Volt 20 Amp low voltage In-vehicle DC Charger featuring technology designed to charge all major lead acid...
Περιγραφή
Φορτιστής REDARC 20A για αν φορτίσετε την εφερδική μπαταρία καθως οδηγάτε ή από φωτοβολταϊκό πάνελ κατά την στάση.

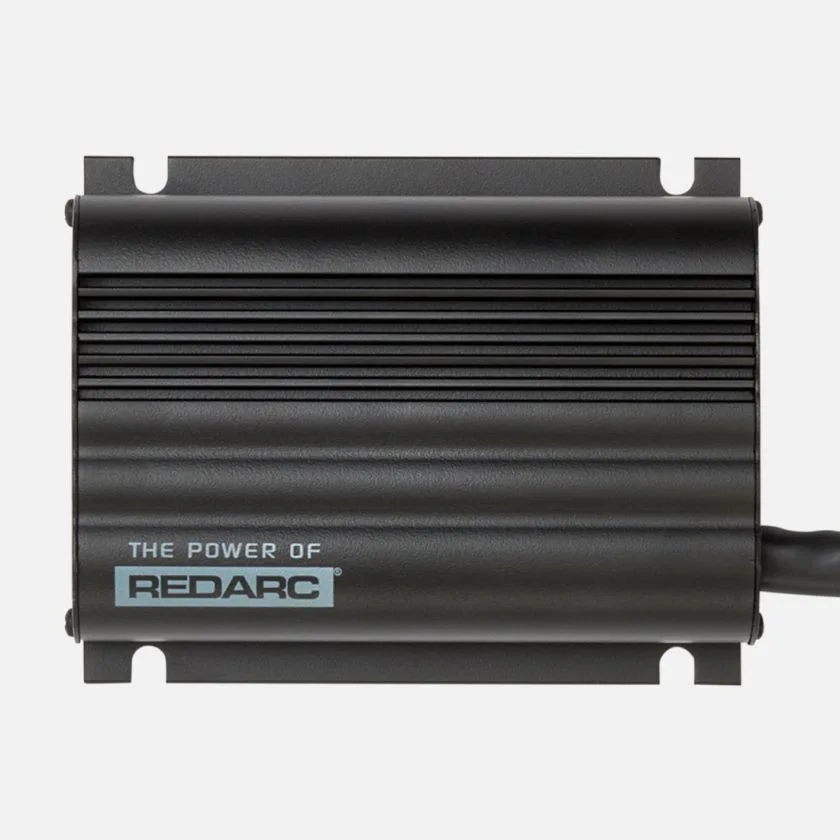

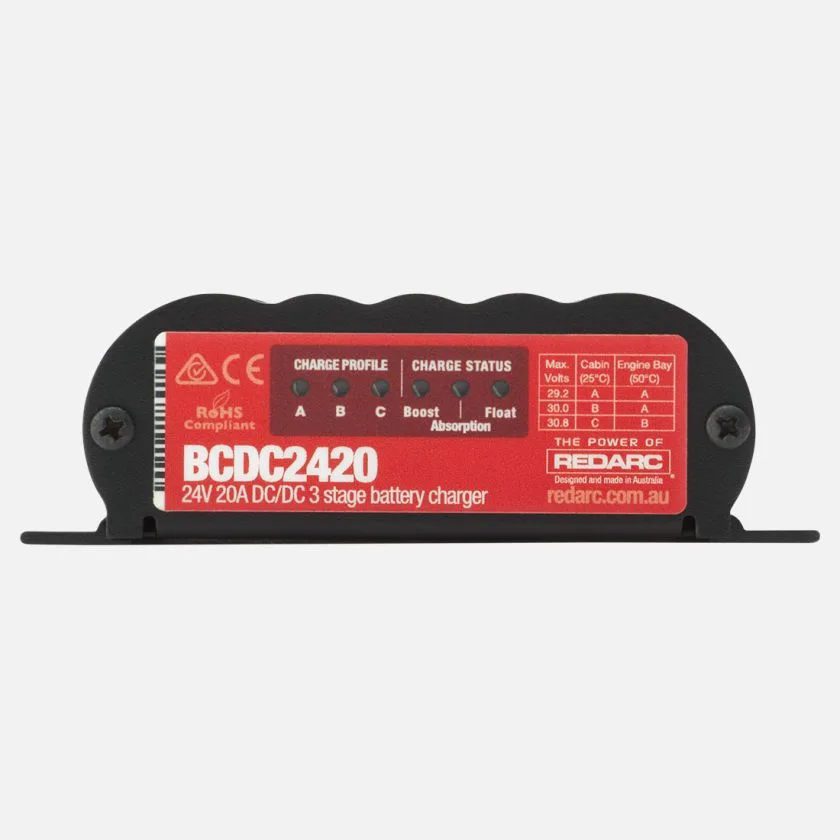

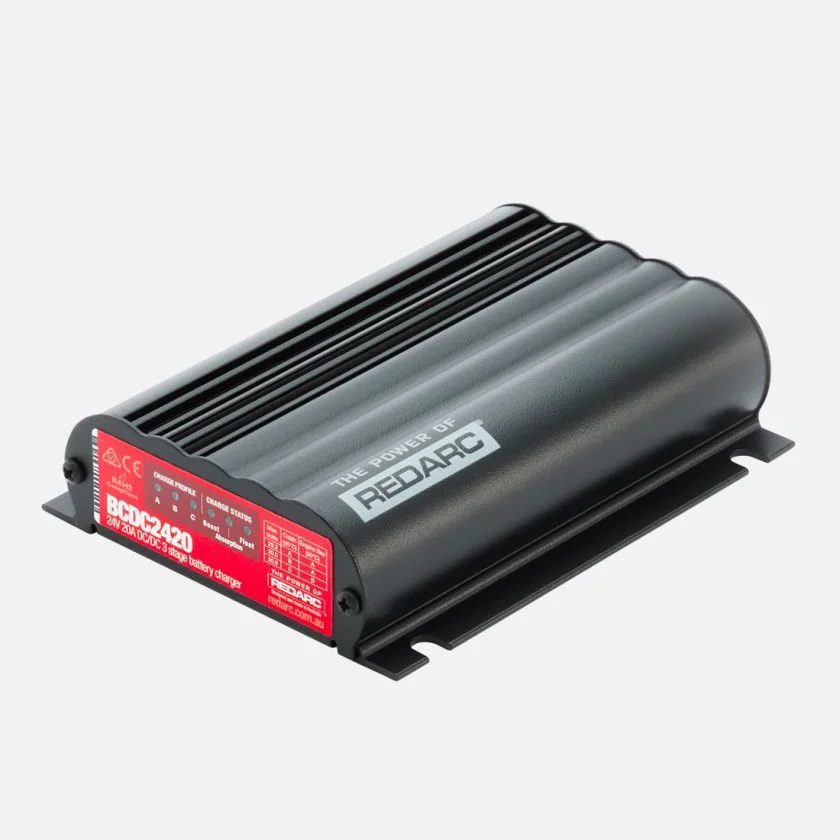

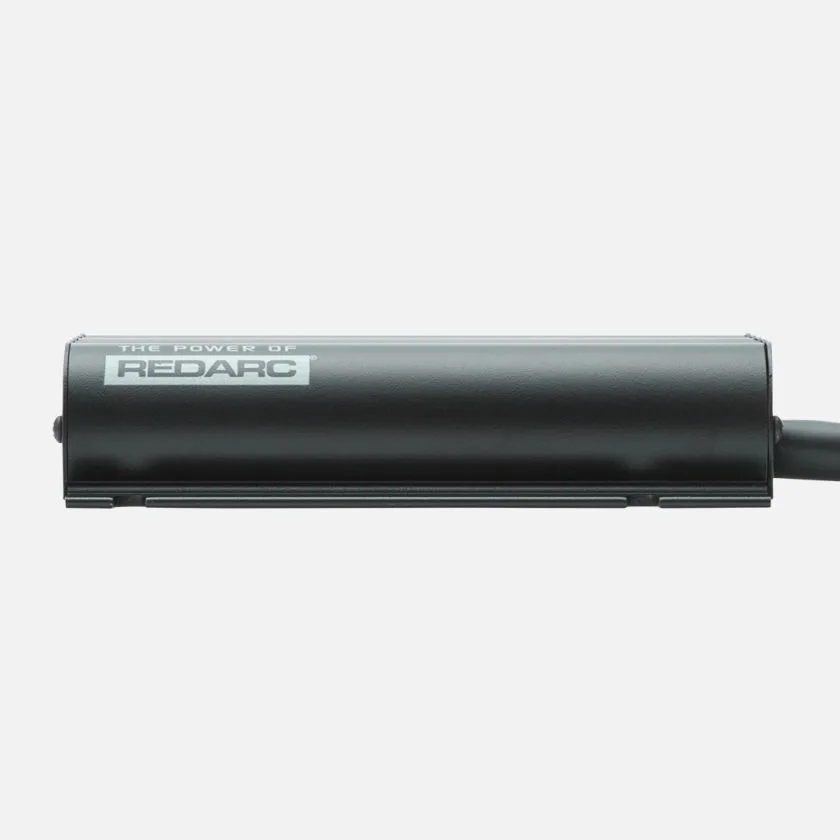

The BCDC2420-LV is a 24 Volt 20 Amp low voltage In-vehicle DC Charger featuring technology designed to charge all major lead acid batteries to a proven 100%.* It’s suitable for vehicles fitted with an ECU-controlled variable voltage alternator and is fully potted making it ideal for high heat, dust, and vibration commonly experienced in under bonnet installations.
*Large-capacity battery banks may require a few cycles to fully charge.
Three-stage charging profile
The REDARC BCDC2420-LV Low Voltage battery charger is a three-stage DC-DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge AGM, gel, VRLA, and standard lead-acid automotive 24V battery systems to an optimal level with chemistry-specific battery charging algorithms.
Perfect for trucking and heavy vehicle applications
The BCDC2420-LV features a multi-stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.
DC to DC battery with in-built MPPT solar regulator
The BCDC2420-LV features an MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.
Features
- Multi-Stage DC to DC Battery Charger
- MPPT Solar Regulator
- Start Battery Isolator
- Fully sealed
- No fan of super quiet operation
- Charges AGM, Gel, Calcium content, VRLA, and Standard Lead Acid batteries
SPECIFICATIONS
SPECIFICATIONS
| GTIN_BARCODE | 9338628004331 |
|---|---|
| BRAND | REDARC |
| BATTERY CHEMISTRY | Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
| CONTINUOUS RATING | 20A |
| POWER TYPE – AC DC | DC TO DC |
| NO LOAD CURRENT | <100mA |
| SOLAR INPUT VOLTAGE | 9 – 32V |
| SOLAR SWITCH ON VOLTAGE | 17.5V |
| STANDBY CURRENT | <8mA |
| WEIGHT | 25 oz (650 g) |
| HEIGHT | 1.5″ (37 mm) |
| WIDTH | 4.7″ (120 mm) |
| DEPTH | LENGTH | 5.9″ (150 mm) |
| WARRANTY | 2 Years |
| CONNECTOR TYPE | Bare wire |
| INPUT VOLTAGE | 9 – 32V |
| OUTPUT VOLTAGE | 24V DC |
| MAX. CHARGING VOLTAGE | 30.6V |
| MAX. RATED OUTPUT CURRENT | 20A |
| NOMINAL OUTPUT POWER | 600W |
| INPUT FUSE RATING | 60A (Not supplied) REDARC FK60 recommended |
| OUTPUT FUSE RATING | 40A (Not supplied) REDARC FK40 recommended |
MANUAL
