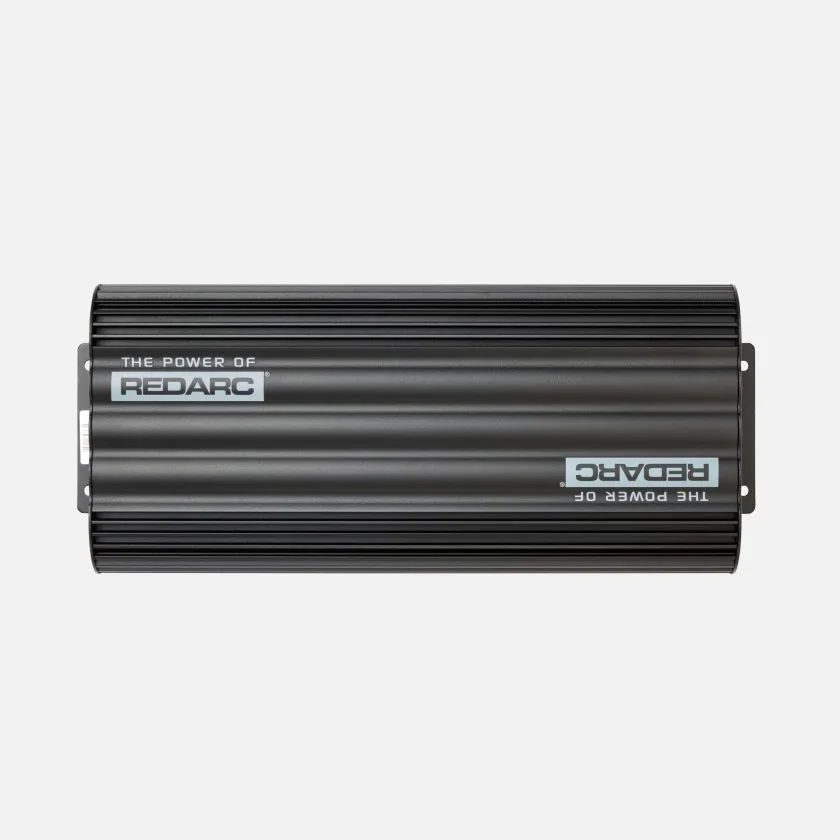

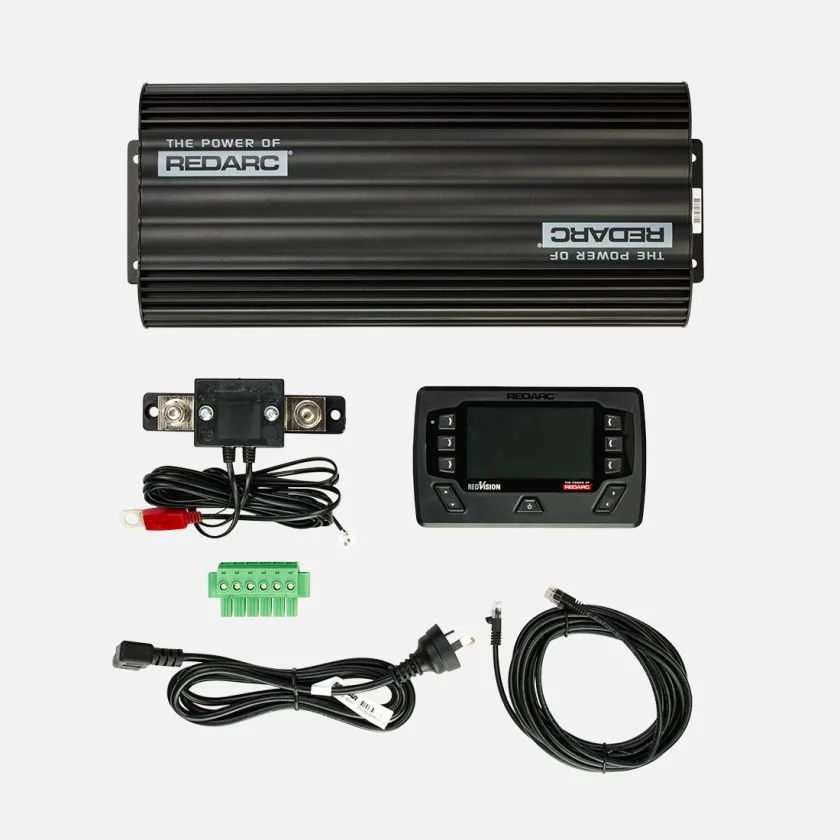

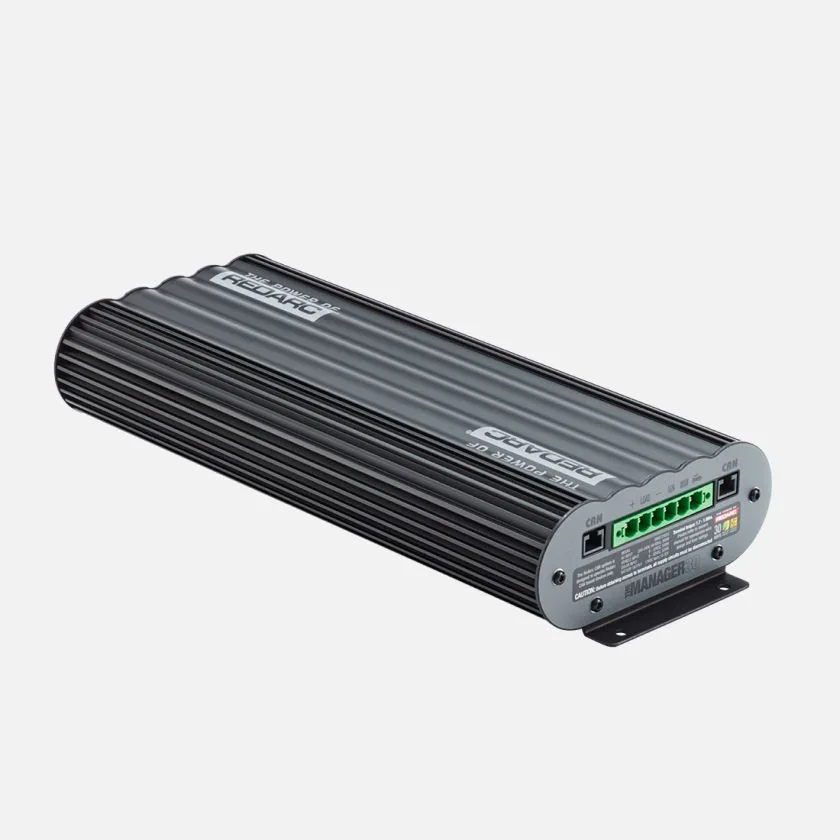

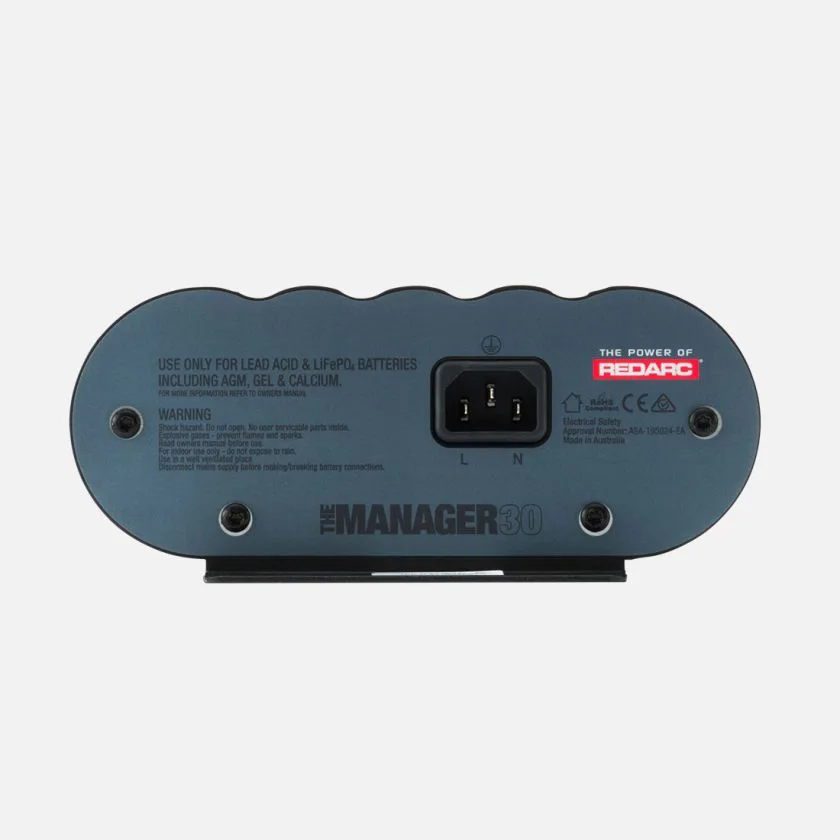

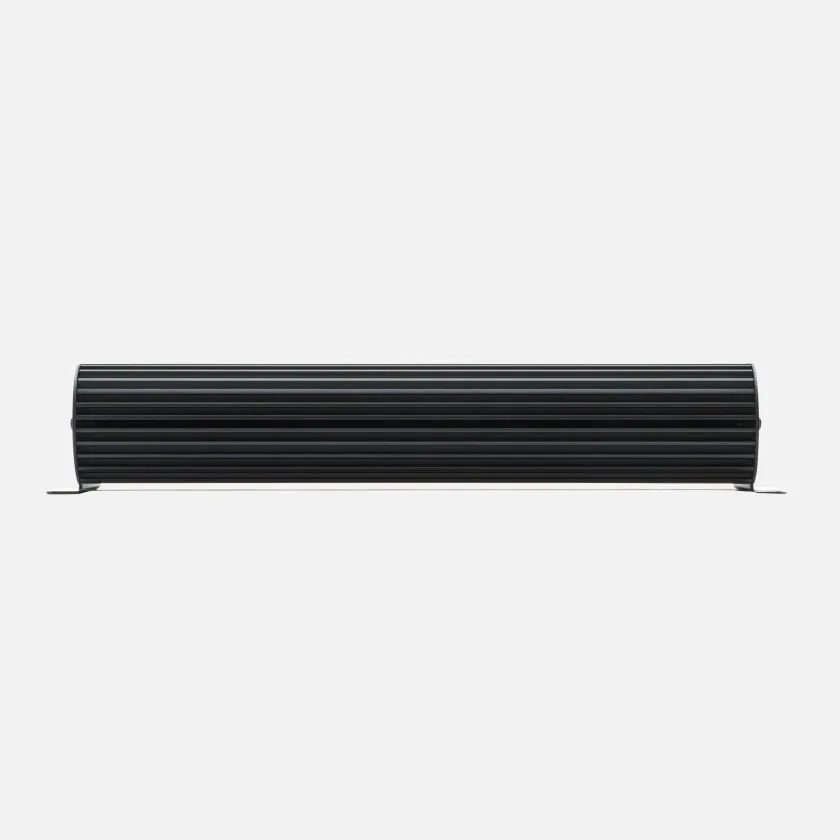

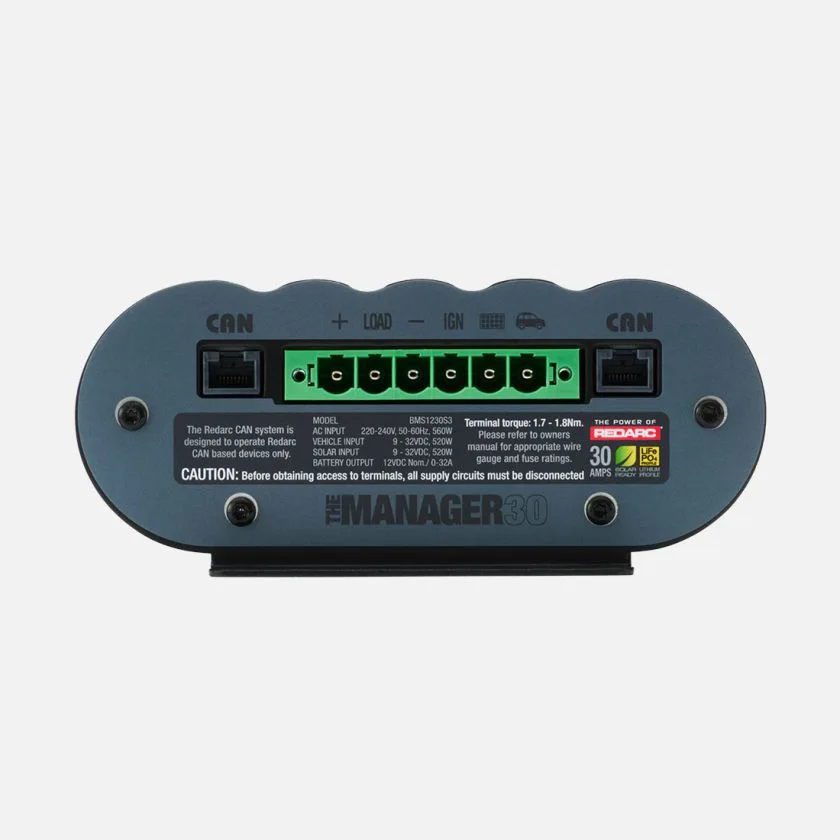

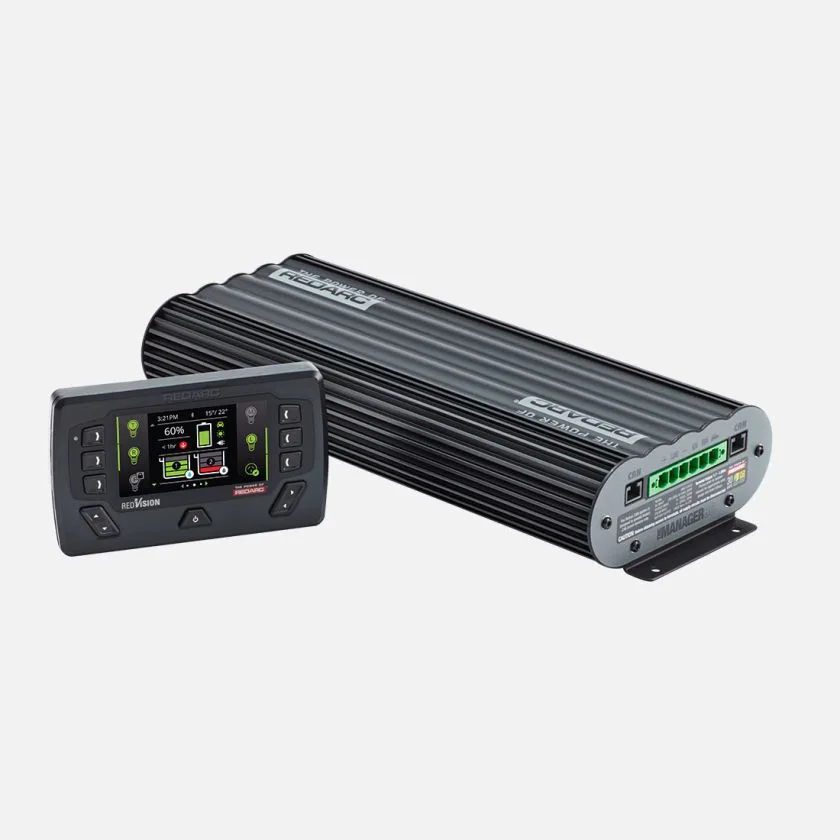

Σύστημα διαχείρησης μπαταριών REDARC THE MANAGER30 WITH REDVISION DISPLAY

Το νέο σύστημα διαχείρησης μπαταριών από την REDARC THE MANAGER30 με οθόνη για να είστε συνεχώς ενημερωμένοι για την κατάσταση των μπαταριών. Ένας φορτιστής 30Α για να φορτίσετε τις εφεδρικες μπαταρίες από το δυναμό , το φωτοβολταϊκό ή το ρεύμα 220V.

The Manager30 BMS1230S3R features both the RedVision display screen and mobile phone connectivity for complete battery management for charging auxiliary batteries used in recreational automotive and marine applications. The dual battery system incorporates AC, DC, and solar inputs to achieve the best charge for an auxiliary battery.

This 30amp charger is the complete battery management system that gives you the best of both worlds. Whether you’re free camping or on a powered site, it knows how to take charge and keep auxiliary batteries fully charged.

The Manager30 operates like 6 separate products, it charges an auxiliary battery from the vehicle while on the move, it’s a 240-volt charger, a solar regulator, a battery isolator, and a load disconnect controller, all with a remote-colored RedVision battery monitor, making it market-leading.

The RedVision remote battery monitor is designed to show auxiliary battery information and charge status through its colored display. You can customize how your battery is charged and monitor where it is coming from. It also provides full connectivity to the Manager30 via the RedVision Smartphone App on both Apple and Android devices.

Whether you’re charging Lead Acid, Gel, Calcium, AGM, or Lithium Iron Phosphate batteries, The Manager30 represents a complete DC-to-DC charging and maintenance solution. If you’re charging one auxiliary battery or more, The Manager30 will ensure they’re always fully charged, providing peace of mind when battery charge provides the power source for the comforts of home whilst traveling around Australia.

Developed with ease of installation in mind, The Manager30 is compatible with all vehicles and alternator systems including variable voltage alternators.

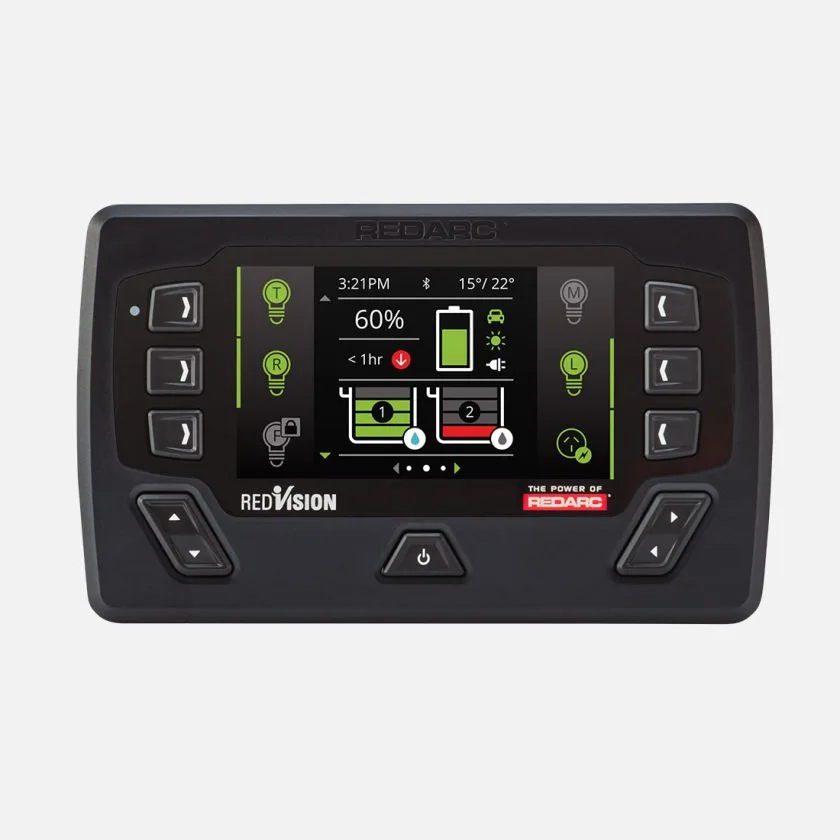

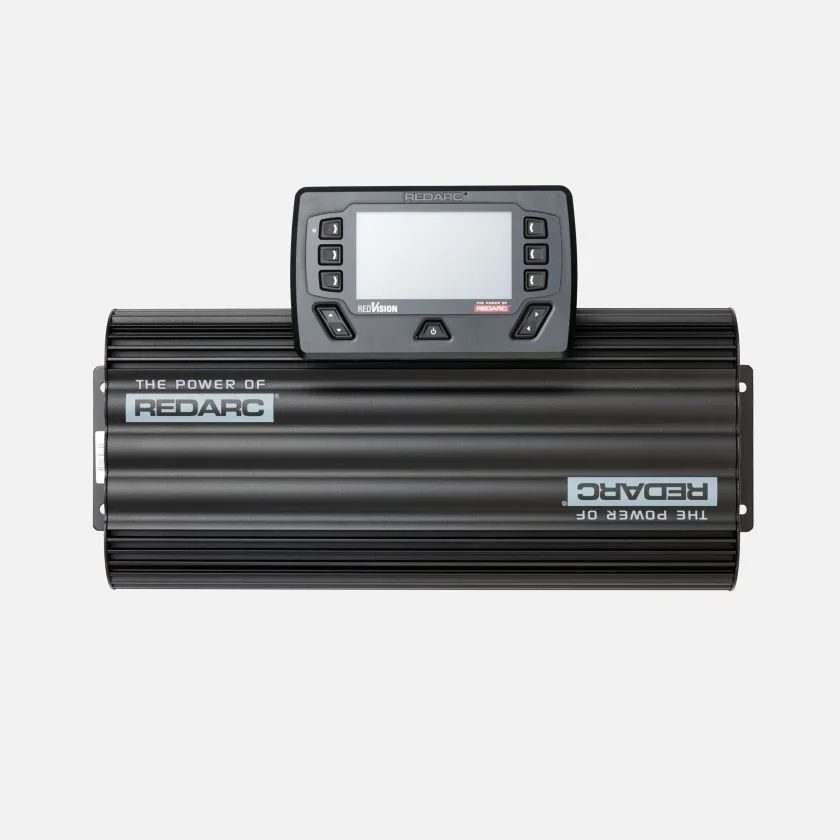

REDVISION MONITOR

The Manager30 comes with a display designed to give you house battery information and charge status along with critical system information while charging is in progress. With the display, you can customize how your house battery is charged and monitor where the charge is coming from, keeping you in control at all times.

The display can be surface mounted on a wall or recessed (into the dashboard of an RV for example). The display also allows a Bluetooth connection to your Smartphone, via the RedVision App, which provides the same data and control available on the display all in the palm of your hand.

CHARGING LITHIUM BATTERIES

Lithium batteries (LiFeP04) have improved storage capacity relative to size and weight. They do however require specific charging conditions in order to operate correctly and the battery itself must have an in-built cell management system. REDARC has designed a charging profile within The Manager30 to complement these in-built systems making it perfect for pairing with REDARC’s Lithium Batteries.

GREEN POWER PRIORITY

The Manager30 is designed to charge an auxiliary battery from multiple sources simultaneously. If 12-volt solar power is available, solar power will be used before topping up the output charging current from another source mains (if available) or DC vehicle power when on the move.

MPPT SOLAR REGULATOR

The built-in Maximum Power Point Tracking (MPPT) solar regulator allows The Manager30 to deliver the maximum amount of power from portable solar panels, even during low light conditions.

FEATURES

• Multi-Stage AC-DC Battery Charger
• Multi-Stage DC to DC Charger
• Maximum Power Point Tracking Solar Regulator
• Improved, 4.3” colored RedVision display battery monitor
• RedVision display allows connection to a Smartphone via an App
• Dual Battery Isolator
• Load Disconnect Controller
• Super quiet operation
• Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
• Tested to mains power safety standards in Australia

SPECIFICATIONS

GTIN_BARCODE	9338628005796
BRAND	REDARC
BATTERY CHEMISTRY	Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only
CONTINUOUS RATING	30A
SOLAR INPUT VOLTAGE	9 – 30V
WEIGHT	12.1 lb (5.5kg)
HEIGHT	3.1″ (78 mm)
WIDTH	7.3″ (186 mm)
DEPTH | LENGTH	17.5″ (445 mm)
WARRANTY	2 Years
INPUT VOLTAGE	240V AC / 9 – 30V DC
OUTPUT VOLTAGE	12V DC
MAX. CHARGING VOLTAGE	14.4 – 16V (settings dependant)
MAX. RATED OUTPUT CURRENT	30A
INPUT FUSE RATING	50A
OUTPUT FUSE RATING	40A (Not supplied) REDARC FK40 recommended

MANUAL

• BMS1230S3R Manual
