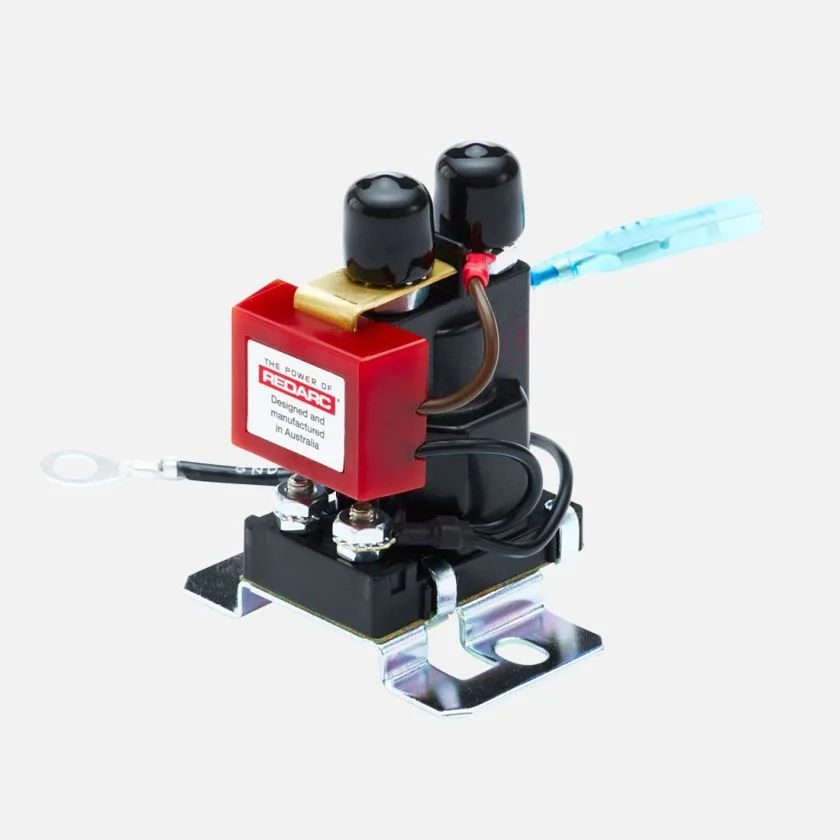

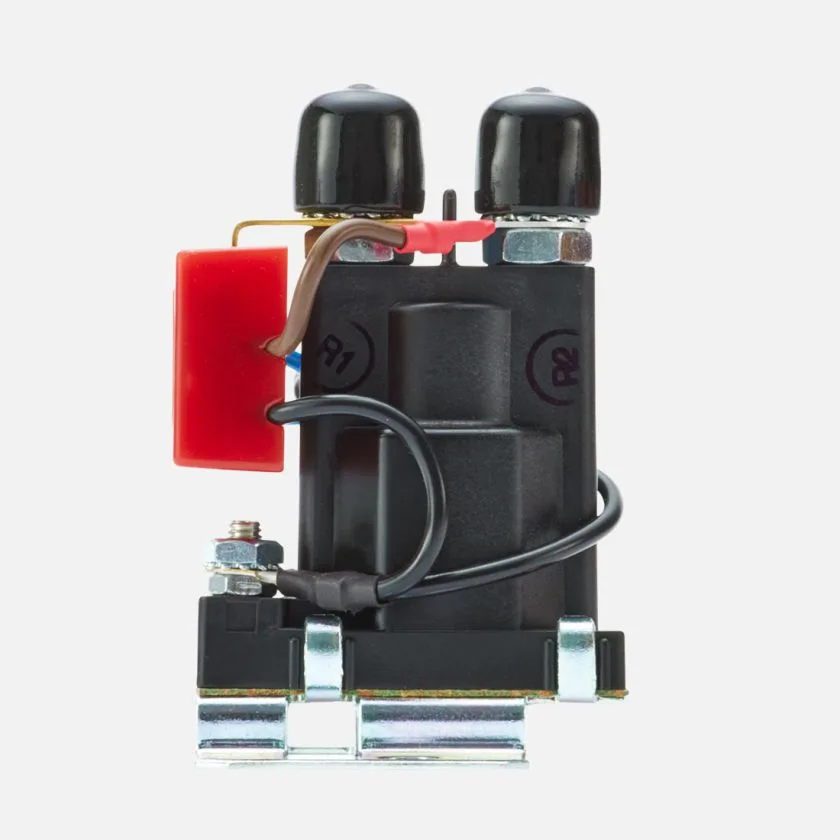

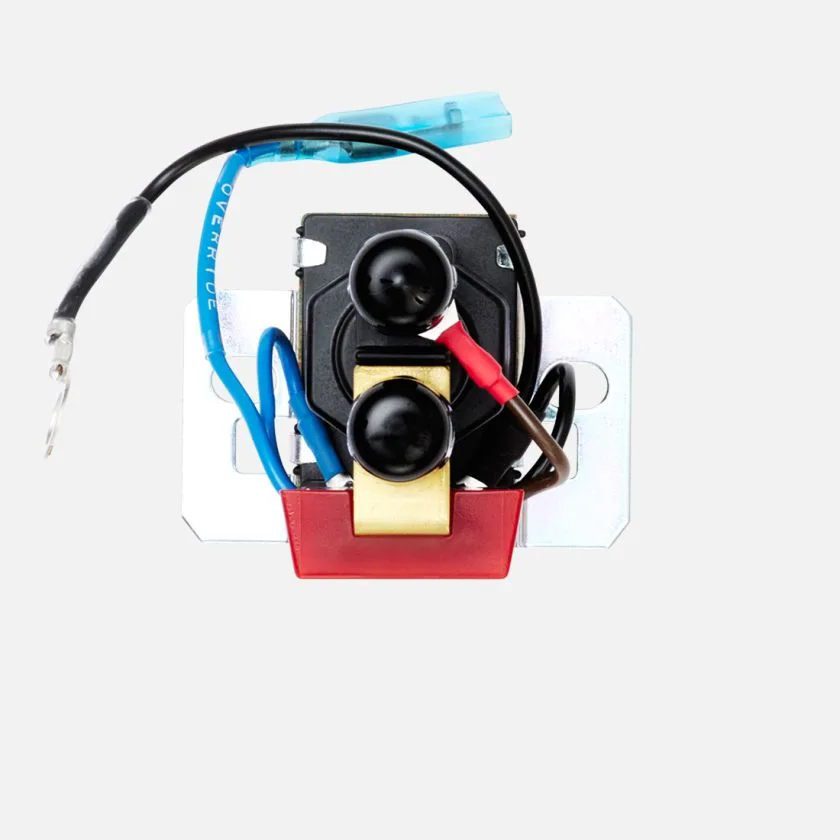

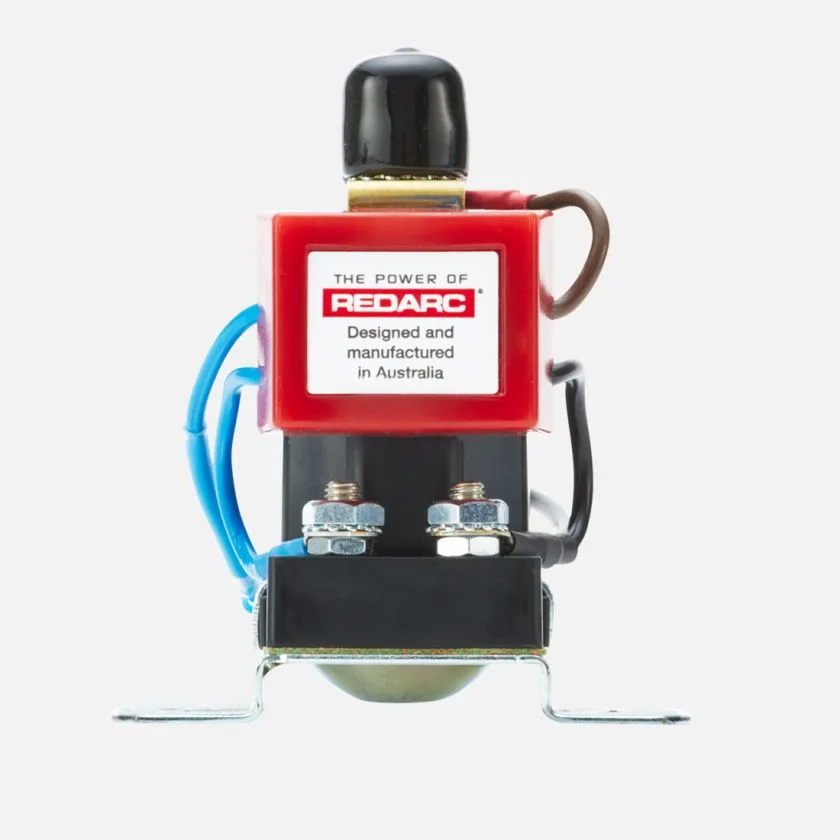

REDARC 12V 100A SMART BATTERY ISOLATOR BMS LOAD DISCONNECT

REDARC 12V 100A SMART BATTERY ISOLATOR BMS LOAD DISCONNECT

The SBI12-BLD is used in conjunction with a REDARC Manager30 BMS to protect the auxiliary battery from excessive discharge. Specifically designed for use as the load disconnect solenoid controlled by the BMS, the black (earth wire) should be connected to the load pin of the BMS.

The BMS sets the turn on and turn off points through its settings and switches this black wire (earth when loads should be on, no earth when loads should be off), and there is additional voltage thresholds monitored by the Smart Start SBI12-BLD to ensure reliable solenoid engagement.

VOLTAGE SPIKE PROTECTION

The SBI12-BLD smart start battery isolator incorporates a number of spike protection components specifically designed to reduce the risk of damaging the unit and is designed to prevent any spikes generated by the solenoid coil from affecting vehicle equipment.

 FEATURES

• Overmould design
• Compact in size and easy to install
• Silver contacts for longer life and are suitable for marine applications
• Power saving technology
• Fault indication
• Fully surge protected

QUALITY FUSE KITS

Installation of REDARC smart battery isolators should also see the use of quality fuse kits.

VIDEO

SPECIFICATIONS

GTIN_BARCODE	9338628005604
BRAND	REDARC
MAX. INRUSH CURRENT	400A
MAX. CONTINOUS CURRENT	100A
TURN ON VOLTAGE	10.2V
TURN OFF VOLTAGE	10V
TURN ON DELAY	5 seconds
TURN OFF DELAY	10 seconds
STANDBY CURRENT	<5mA
OPERATING CURRENT	<0.1A
WEIGHT	7 oz (200 g)
HEIGHT	2.48″ (70 mm)
WIDTH	2.95″ (75 mm)
DEPTH | LENGTH	3.15″ (80 mm)
WARRANTY	2 Years
SYSTEM VOLTAGE	12V
OUTPUT VOLTAGE	12V DC
INPUT FUSE RATING	100A
OUTPUT FUSE RATING	100A

MANUAL

• SBI12-BLD Instruction Manual EN
• SBI12-BLD Install Guide EN DE ES FR IT PL AR
