€160.00
Σύστημα διαχείρισης 2 μπαταριών REDARC 12V 100A SMART BATTERY ISOLATOR The REDARC Smart Start® SBI2 is a microprocessor-controlled battery isolator used in dual battery systems as a solenoid priority system. It will protect the start battery from excessive discharge, whilst...
Περιγραφή

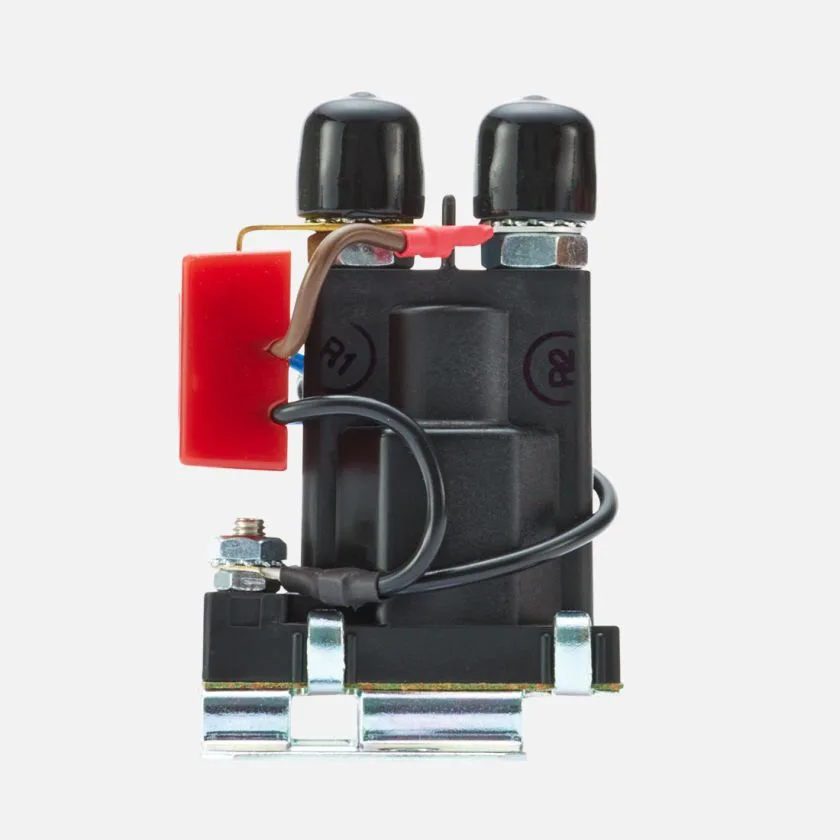

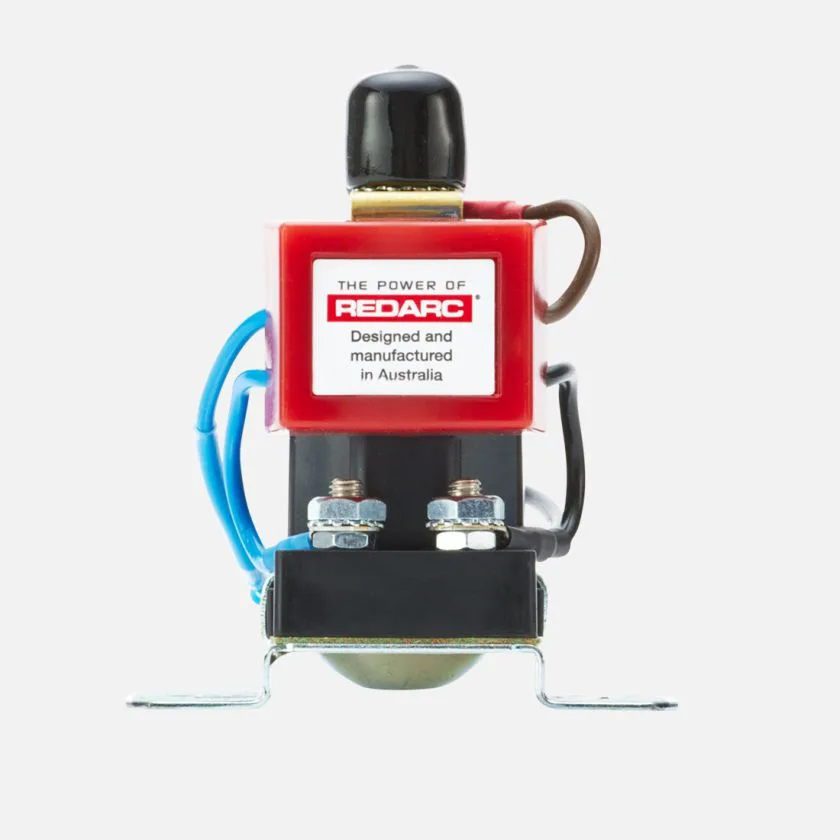

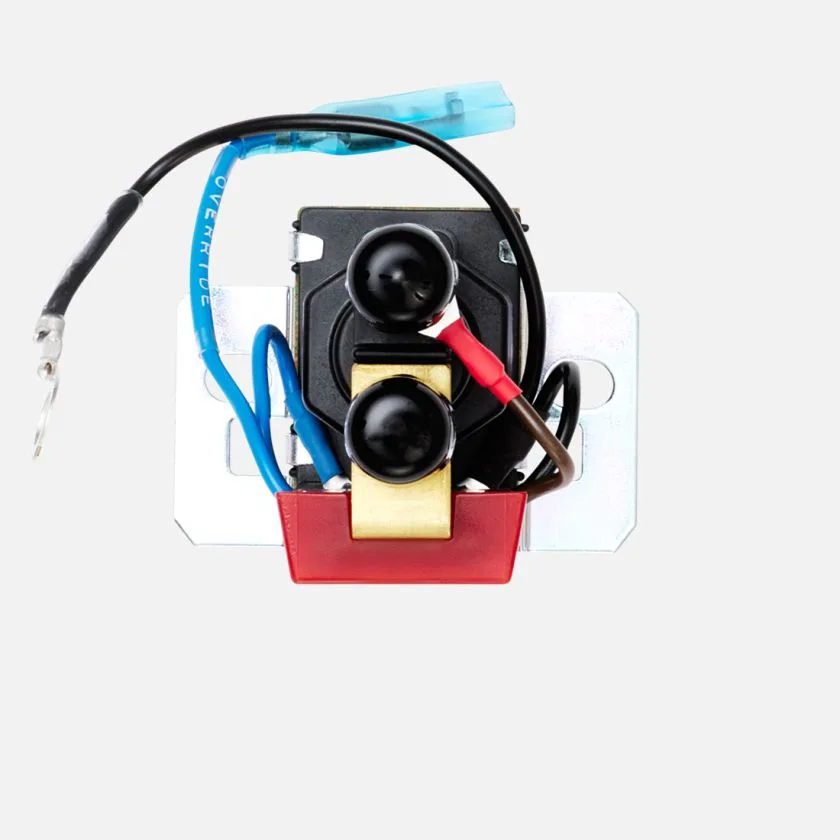

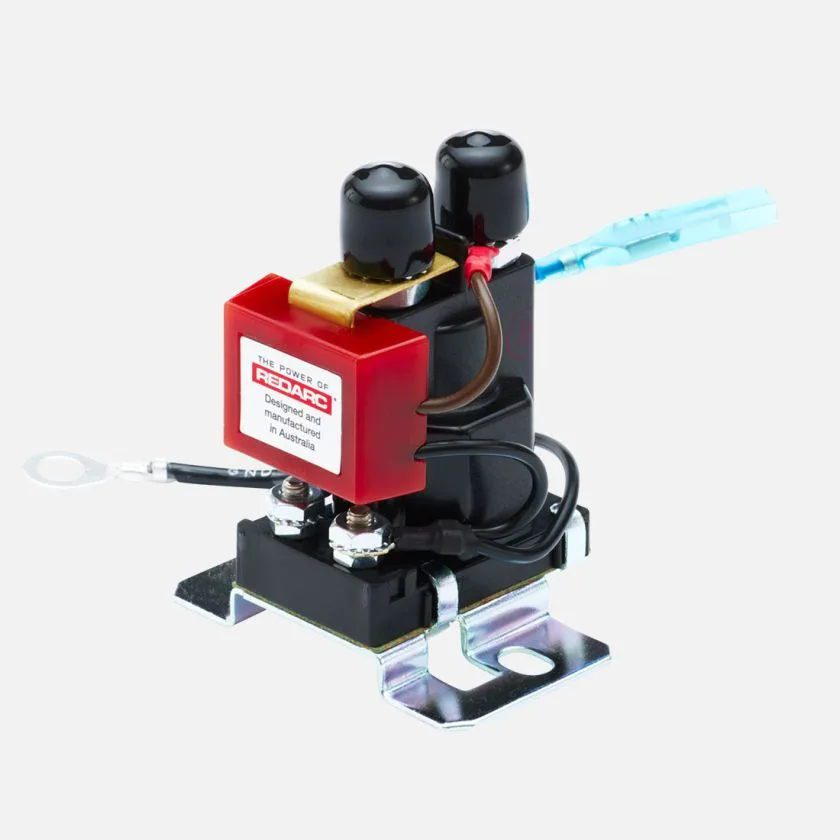

Σύστημα διαχείρισης 2 μπαταριών REDARC 12V 100A SMART BATTERY ISOLATOR
POWER SAVING TECHNOLOGY
The battery isolator is primarily used in 4WD and commercial vehicles and incorporates electronic components that will prevent the solenoid from generating high-voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode-type isolation. It features a low standby current draw and sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop, and excessive current draw conditions.
The Smart Start SBI12 battery isolator is a safe way to charge a dual battery system and should often be installed with a high-quality fuse kit.
FEATURES
- Overmould design
- Compact in size and easy to install
- Silver contacts for longer life and are suitable for marine applications
- Power saving technology
- Fault indication
- Fully surge protected
VIDEO
VIDEO
SPECIFICATIONS
SPECIFICATIONS
| GTIN_BARCODE | 9338628000005 |
|---|---|
| BRAND | REDARC |
| MAX. INRUSH CURRENT | 400A |
| MAX. CONTINOUS CURRENT | 100A |
| TURN ON VOLTAGE | 13.2V |
| TURN OFF VOLTAGE | 12.7V |
| TURN ON DELAY | 5 seconds |
| TURN OFF DELAY | 10 seconds |
| STANDBY CURRENT | <5mA |
| WEIGHT | 7 oz (200 g) |
| HEIGHT | 2.48″ (70mm) |
| WIDTH | 2.95″ (75mm) |
| DEPTH | LENGTH | 3.15″ (80mm) |
| WARRANTY | 2 Years |
| SYSTEM VOLTAGE | 12V |
| OUTPUT VOLTAGE | 12V DC |
| INPUT FUSE RATING | 100A |
| OUTPUT FUSE RATING | 100A |
