OUTBACK SOLUTIONS MODULAR ROLLER DRAWER SYSTEMS

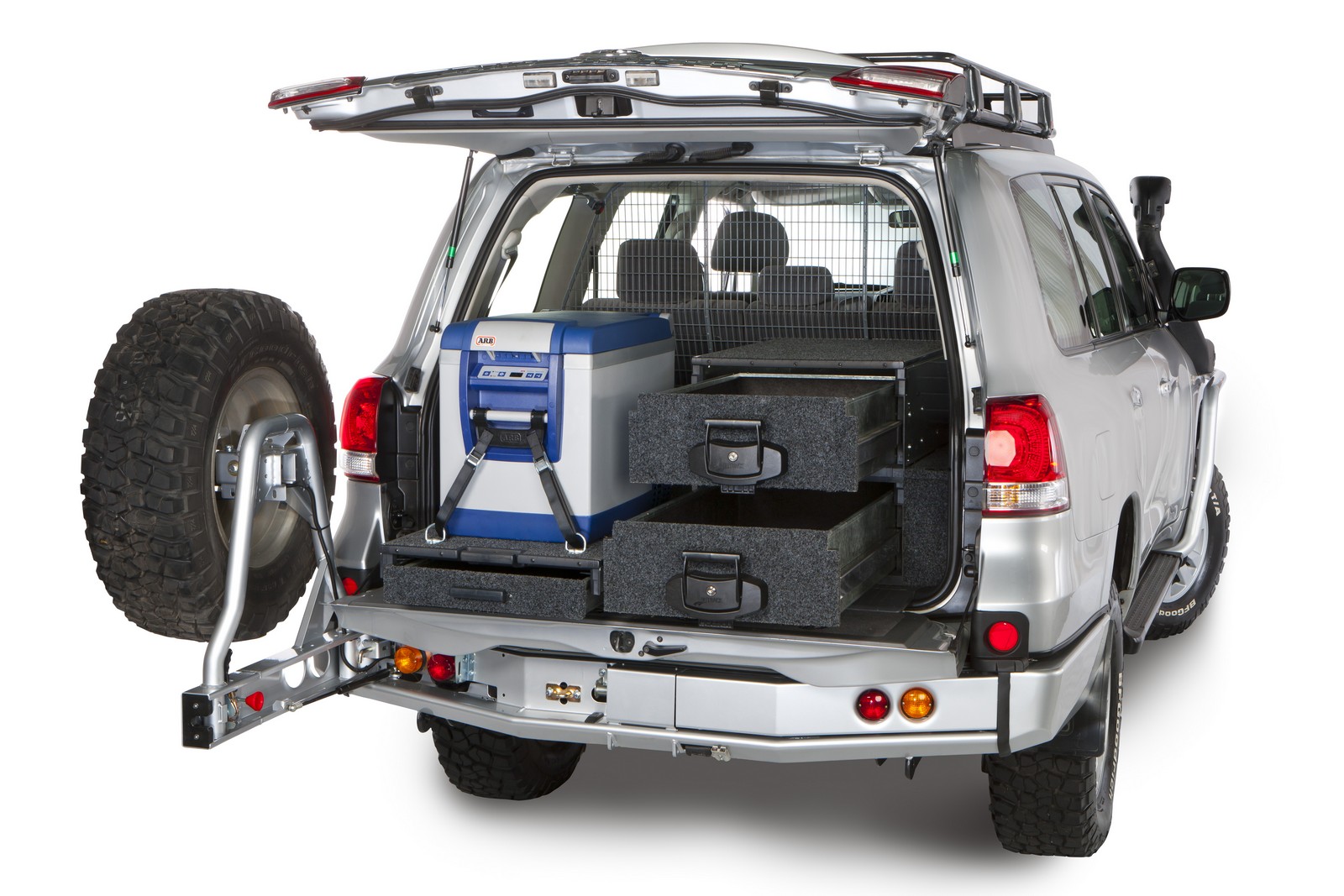

Completely modular, the Outback Solutions range of drawer systems can be individually tailored to your needs and vehicle. Exclusive to ARB and suitable for many vehicles including wagons, utes (including extra cab), and trailers, this system can be used in non-vehicle applications such as sheds and warehouses.

Three types of modules are available, in a range of sizes, resulting in more than 200 possible configurations, all backed by a two-year warranty.

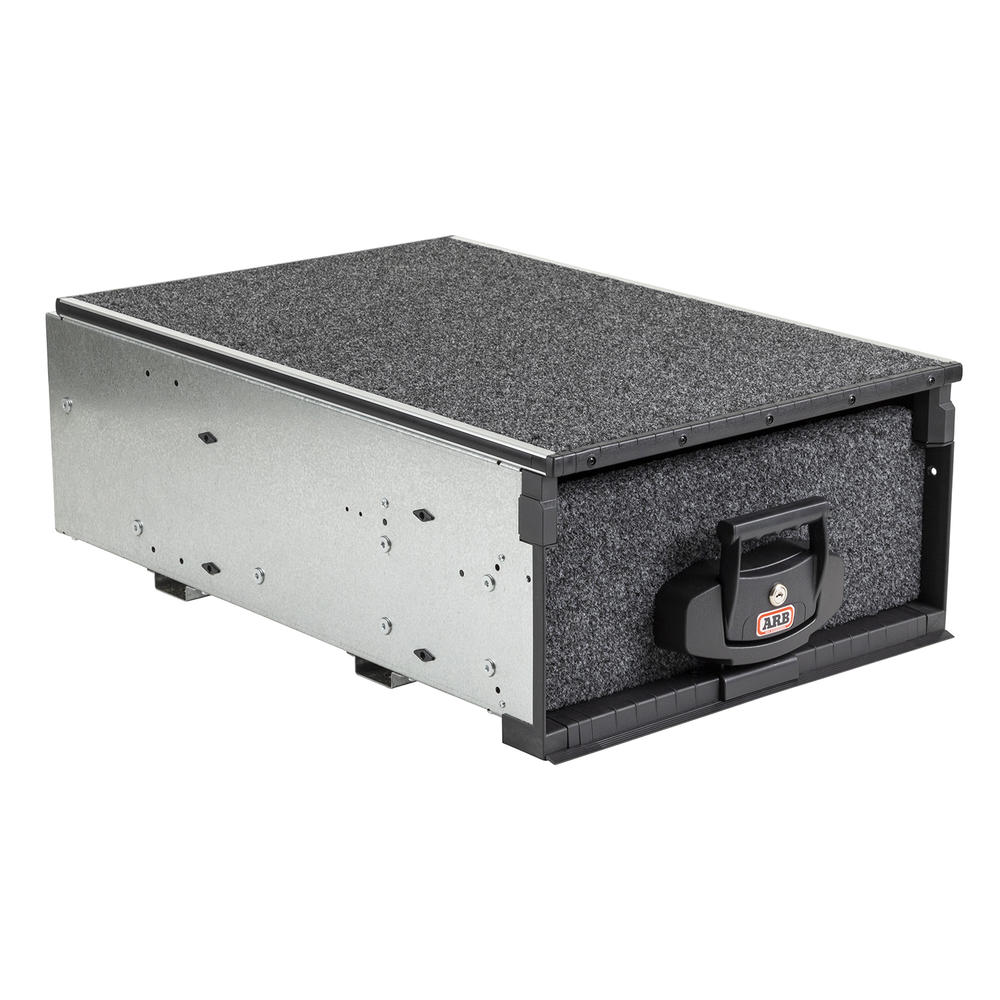

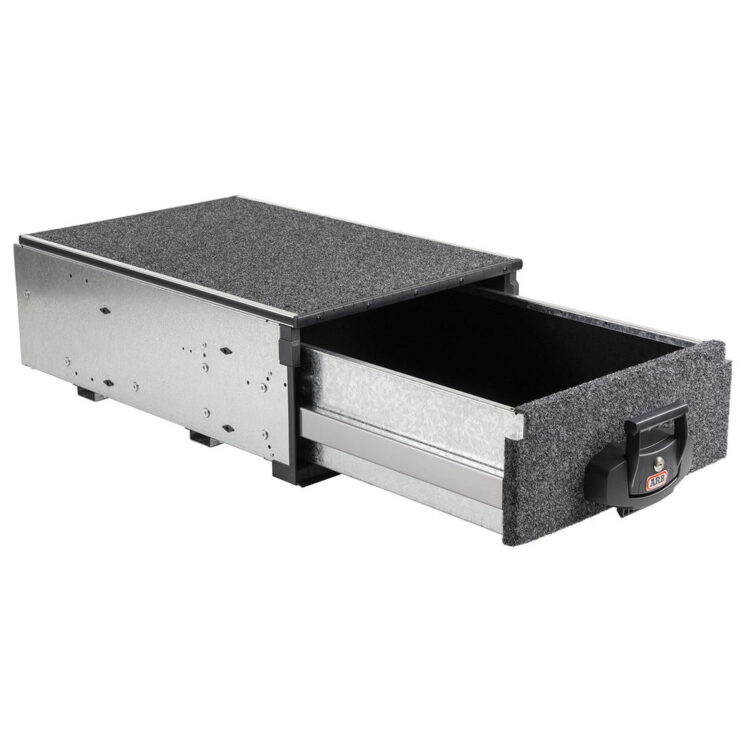

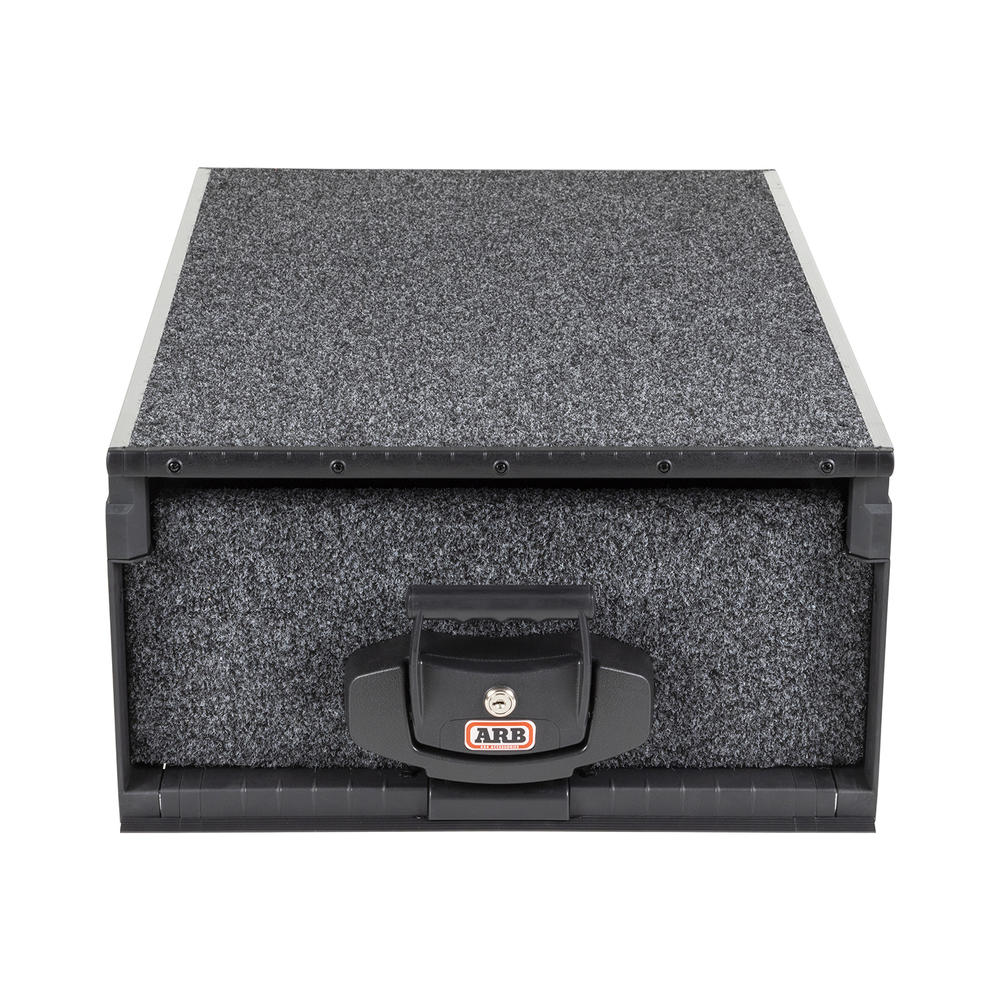

ROLLER DRAWER

For convenient storage of items such as recovery equipment and clothing, the traditional style roll-out drawer comes with a fixed top. This allows for additional modules to be stacked on top or provides a flat surface for storing other, larger items.

KEY FEATURES

• Engineered for both on and off-road touring with anti-rattle design

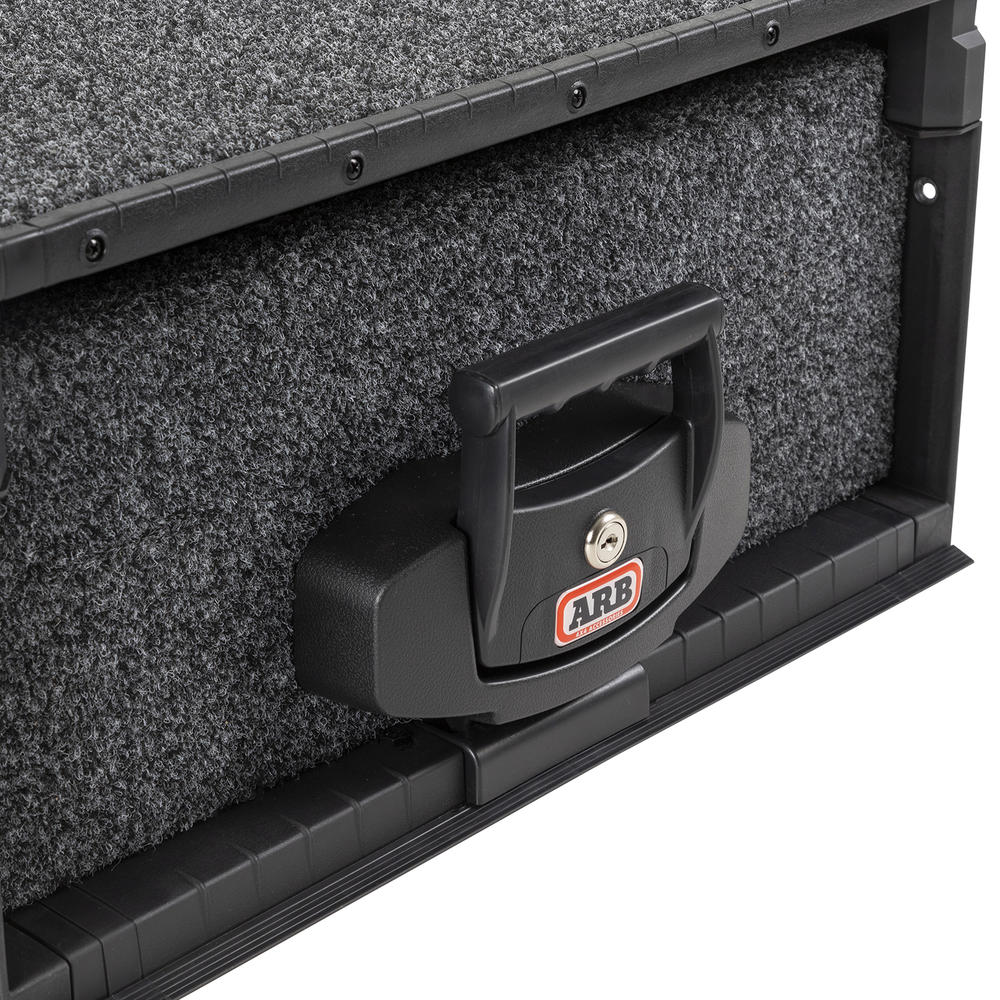

• Key lockable, push-pull slam-shut latches for ease of use and maximum security
• Long-lasting, UV-stable commercial carpet designed to complement modern vehicle interiors
• Cross-folded floor ensures maximum support for items placed within each unit. Up to a Maximum of 150Kg per drawer, 300kg combined
• Fully sealed, Dust and water-resistant bearings for superior longevity working in harsh environments
• Optional vehicle-specific side floor kits with easy latches, complete installation and provide additional storage areas within the cabin or tray
• Water-resistant bonded marine ply, sourced from sustainable forests, is reinforced with steel for superior strength
• Folded stainless steel bearing runners for ultra-smooth drawer and slide operation
• Self-locking anti-rollback system locks into place at full extension, which holds the drawer from rolling closed even on inclines
• Modular units allow greater flexibility if needs change in the future
• Class-leading deep drawers with internal heights up to 250mm for greater packing potential

Net Weight(Kg) 29.5
Width(cm) 53.5
Height(cm) 28
Length(cm) 84.5
Bar Code 9332018013576
Fitting Time (min) 60
Packaging length [cm] 90
Packaging width [cm] 58
Packaging height [cm] 34
Gross Weight [kg] 32
Drawer Height Combinations 1 x Full Height
Drawer Top Configuration Fixed Floor
Body Style SUV, wagon
Load Capacity Per Drawer [kg] 100
Drawer Extension [%] 60
Drawer Guide Spherical Roller Bearing
Fitting Position Third row
Storage box type Splash-proof
Storage box type Vibration-resistant
Storage box type with security lock
Lock System with key
Drawer Depth [mm] 750
Drawer width [mm] 465
Drawer height [mm] 220
Colour dark grey
Material Steel
Surface primed
Version ADR 42/03
Product Feature ADR Compliant
Product Feature With Anti-roll back
Warranty 3 Years
