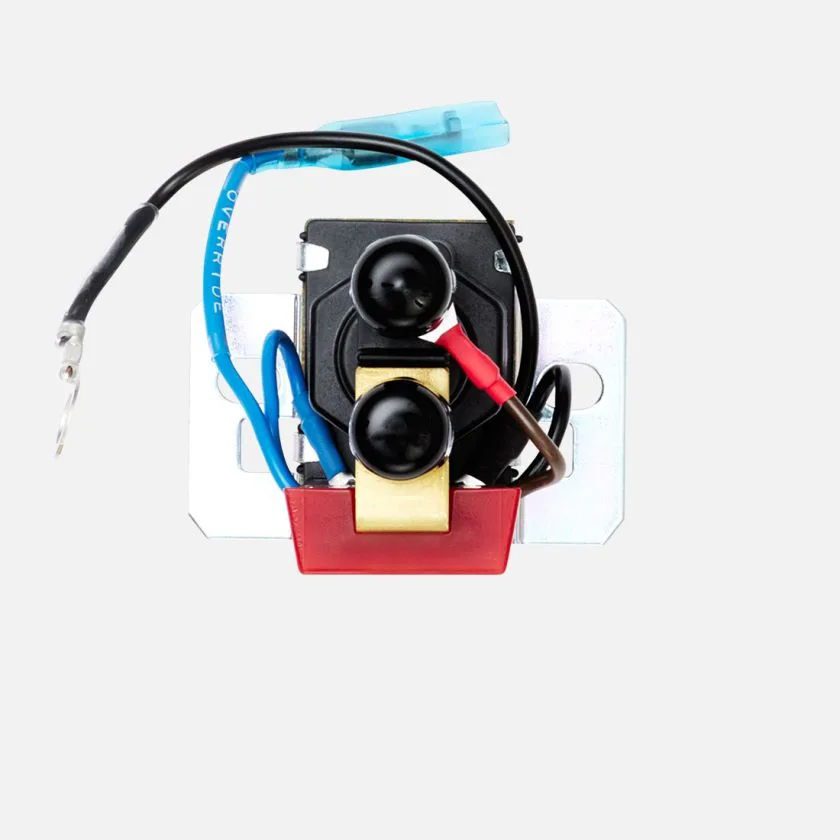

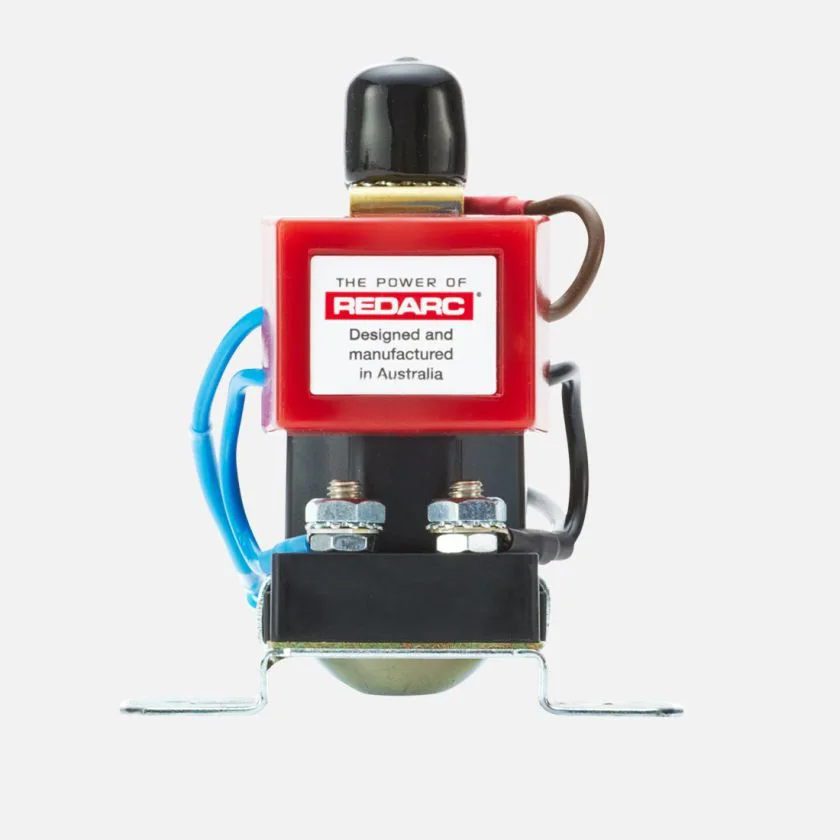

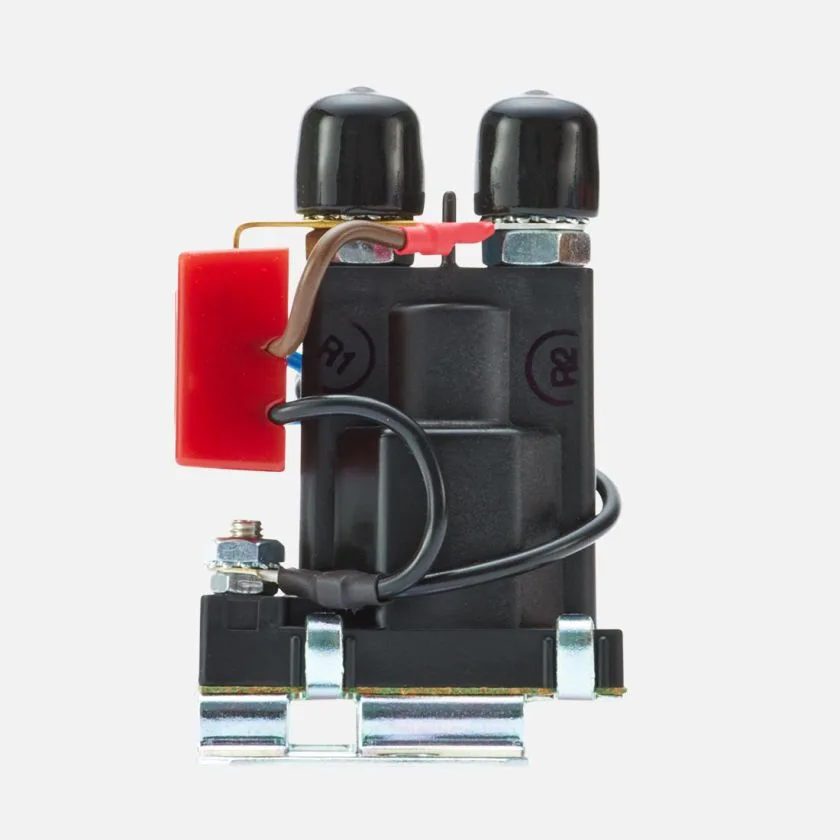

REDARC 12V 100A SMART BATTERY ISOLATOR LITHIUM LOAD DISCONNECT

REDARC 12V 100A SMART BATTERY ISOLATOR LITHIUM LOAD DISCONNECT

The SBI12-LLD is a microprocessor-controlled Load Disconnect Isolator. The SBI12-LLD is designed for use in lithium battery applications (LiFePO4) as a system to protect the battery from being excessively discharged by auxiliary loads, enabling the auxiliary battery to remain above the level at which internal protection circuitry would activate. Falling below this threshold would prevent many chargers from recharging the battery.

Put simply, once the auxiliary battery has been overly discharged, the Load Disconnect Isolator will turn off any connected loads. Similarly, if the battery climbs back above a suitable level, the Load Disconnect Isolator will restore power to the connected loads.

SPIKE PROTECTION

The SBI12-LLD Smart Start battery isolator incorporates a number of spike protection components specifically designed to reduce the risk of damaging the unit. It is also designed to prevent any spikes generated by the solenoid coil from affecting vehicle equipment.

FEATURES

• Overmould design
• Compact in size and easy to install
• Silver contacts for longer life and are suitable for marine applications
• Power saving technology
• Fault indication
• Fully surge protected

QUALITY FUSE KITS

Installation of REDARC smart battery isolators should also see the use of quality fuse kits.

SPECIFICATIONS

GTIN_BARCODE	9338628005598
BRAND	REDARC
MAX. INRUSH CURRENT	400A
MAX. CONTINOUS CURRENT	100A
TURN ON VOLTAGE	11V
TURN OFF VOLTAGE	10.5V
TURN ON DELAY	10 seconds
TURN OFF DELAY	2 seconds
STANDBY CURRENT	<5mA
OPERATING CURRENT	<0.1A
WEIGHT	7 oz (200 g)
HEIGHT	2.48″ (70 mm)
WIDTH	2.95″ (75 mm)
DEPTH | LENGTH	3.15″ (80 mm)
WARRANTY	2 Years
SYSTEM VOLTAGE	12V
OUTPUT VOLTAGE	12V DC
INPUT FUSE RATING	100A
OUTPUT FUSE RATING	100A

MANUAL

• SBI12-LLD Instruction Manual EN
• SBI12-LLD Install Guide EN DE ES FR IT PL AR
